Vital Sphere 360: 2.0 ATA Clinical Hyperbaric Chamber

High-volume hyperbaric programs run into the same constraints eventually. A chamber that works for six patients per day struggles at ten. Standard-width chambers that accommodate most patients don’t accommodate all of them. Equipment built for general wellness doesn’t hold up to the demands of a busy wound care or rehabilitation schedule. And the features that make the real difference, how fast the chamber turns over between patients, how quietly it operates, how comfortably it fits the full range of patients who need it, rarely show up clearly in a specification comparison.

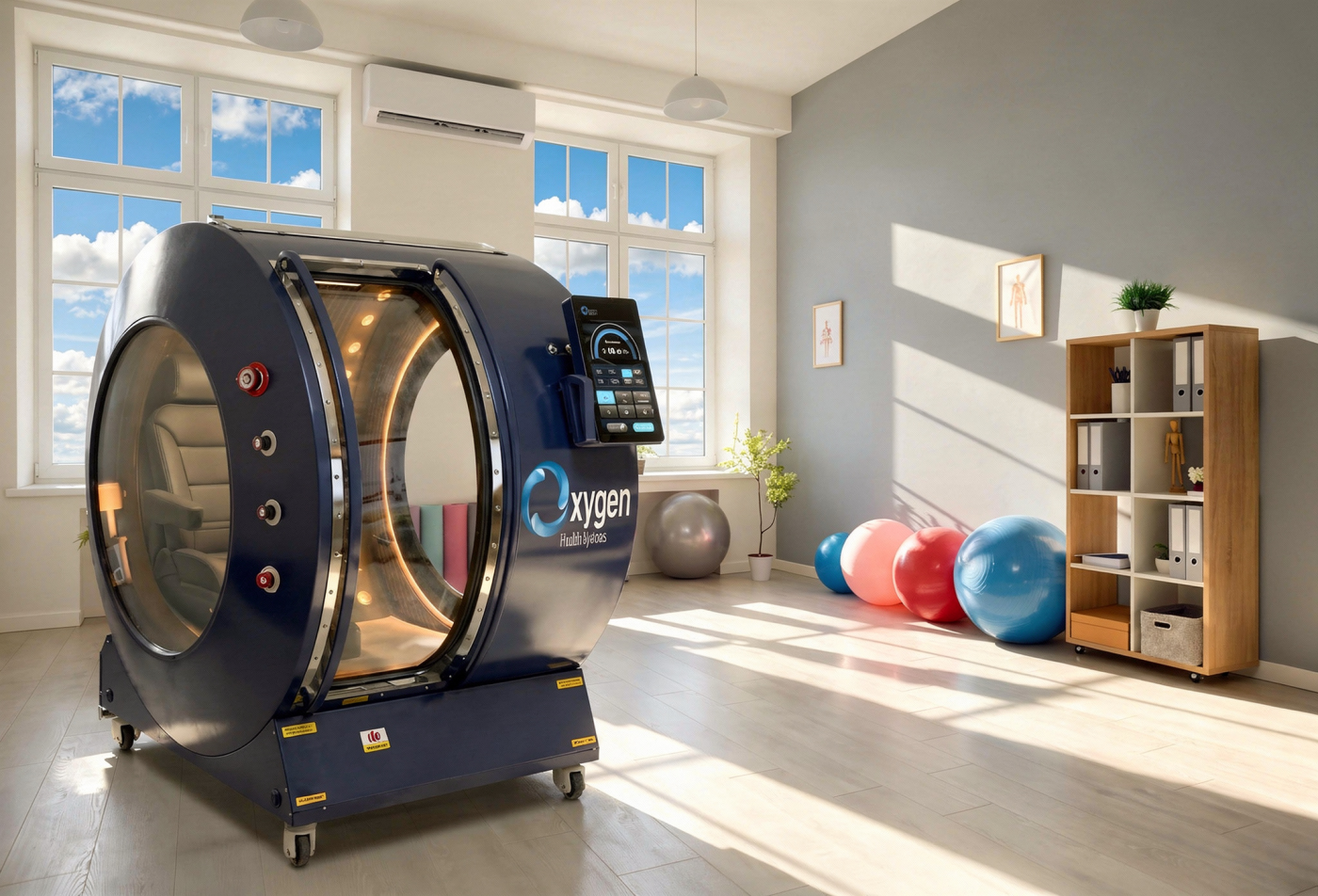

The 57″ Vital Sphere 360 is Oxygen Health Systems’ flagship vertical hard chamber, a spacious, clinic-ready 2.0 ATA unit built for programs that need performance, capacity, and quiet daily operation.

Why the 57″ Interior Changes the Clinical Experience

Interior size is not just a comfort specification. At 2.0 ATA, the therapeutic standard for wound care, post-surgical recovery, and rehabilitation programs, the physical sensation of the pressurized environment intensifies. Patients who manage sessions comfortably at lower pressures can find a smaller chamber at 2.0 ATA more difficult than expected, particularly patients who are already medically compromised or managing anxiety related to their condition.

The 57″ Vital Sphere 360 provides significantly more usable interior space than standard clinical monoplace configurations (overall dimensions: 54″ W × 67″ D × 69″ H). The motorized business-class reclining seat, with adjustable lumbar support, footrest, and seat-forward positioning, gives patients room to find a comfortable position and hold it through a 60 to 90-minute session. For programs treating patients over extended protocol cycles, that comfort affects both patient retention and protocol adherence in ways that don’t always show up in clinical outcome data but absolutely show up in appointment completion rates.

For bariatric patients specifically, the spacious interior accommodates a broader patient size range without workarounds. A program that can’t comfortably treat larger patients is excluding a significant portion of the wound care and rehabilitation population, often the patients who most need the therapy.

Configuration Options

The Vital Sphere 360 is available as a single-seat comfort chamber or configured as a dual-seat setup for shared sessions. It ships in two formats:

Single-piece unit: Delivered as one complete chamber. Requires wider doorway access and open floor approach.

Two-piece modular unit: Each section is 30 inches wide, designed to pass through standard US doorways and most commercial elevators. For clinical facilities in multi-story buildings or spaces with standard door clearances, the two-piece configuration removes one of the most common installation obstacles for large-format chambers.

For programs weighing a dual-seat setup, running two patients through a session simultaneously, the economics shift considerably. Two patients per session at the same session rate doubles the hourly revenue from a single chamber without adding session hours or room count.

Operational Features Built for Clinical Use

Ultra-quiet auto-depressurization under 60 dB. When a session ends, the Vital Sphere 360 depressurizes automatically and quietly, clocking in at under 60 decibels, quieter than normal conversation. Most competing hard chambers depressurize manually with a loud, sustained hissing sound that travels through walls and disrupts adjacent clinical spaces. For wound care centers, rehabilitation facilities, or any program sharing a building with other services or patient areas, that sound is an ongoing problem. Oxygen Health Systems developed the auto-depressurization system specifically to address this. No other hyperbaric manufacturer currently offers it.

No special venting required. Unlike some large-format clinical chambers that require facility modifications for oxygen management during operation, the Vital Sphere 360 maintains stable room oxygen levels and operates without special venting infrastructure. For clinical buyers navigating facility approval processes, this simplifies both the installation conversation and the compliance review.

Selectable pressure: 1.3, 1.6, 1.8, and 2.0 ATA. Both interior and exterior controls allow staff or the patient to set and adjust session pressure. For programs running mixed protocols across a patient population with varying clinical needs, the ability to dial to a specific pressure without manual valve management reduces setup time and eliminates variability between staff members.

Dual redundant 120 LPM air compressors. If one compressor fails during a session, the second maintains chamber pressure and the session completes. For a clinical program where chamber downtime means cancelled patient appointments and disrupted protocol continuity, compressor redundancy is a baseline operational requirement.

Diamond-quilted sound-absorbing interior. The interior lining uses diamond-quilted acoustic materials that minimize echo and create a quieter environment for patients during sessions. Patients can work, rest, or use the entertainment system without the ambient noise common in standard hard chambers.

Integrated digital monitoring. Interior and exterior digital displays show current pressure, air temperature, humidity, and oxygen percentage in real time. Staff can monitor session conditions from outside the chamber without entering, and patients can observe conditions independently from inside.

Communication interphone. Built-in communication between the chamber interior and clinical staff allows patients to reach the attending staff member without interrupting the session or requiring staff to enter the room.

Grounding mat with static protection. Standard in the Vital Sphere 360, the grounding system is designed to provide a static-free session environment in a pressurized oxygen setting.

Optional Upgrades

Several features are available as upgrades rather than standard inclusions, worth confirming at time of purchase:

BIBS mask system. Optional upgrade delivering concentrated oxygen directly through a mask with CO2 scrubbing. For programs where maximizing per-session oxygen dose is clinically important, this is the delivery system to specify. The standard configuration uses oxygen headsets, nasal cannulas, and facemasks delivering 95% oxygen.

Dedicated air conditioning. The standard unit includes an integrated dehumidifier at no additional cost. For facilities where ambient temperature runs high or patients require a consistently cooler session environment, a dedicated water-cooled triple-action air conditioning system is available as an upgrade.

Interior Starlight lighting. Optional ambient ceiling lighting in addition to the standard LED mood lighting system.

Smart TV entertainment. Optional integrated entertainment system for extended session comfort.

New Protocols User Interface. An optional programmed protocol system that automatically adjusts session pressure on a timed basis across six available protocol options.

Installation and Facility Planning

Footprint. The Vital Sphere 360 in its single-piece configuration measures 58.4″ W × 67″ D × 69″ H and weighs 1,200 pounds. Plan for this footprint plus minimum clearances on all sides for patient entry, exit, staff access, and equipment service.

Electrical. The integrated smart controller and dual compressor unit draws 2,010 watts and measures 36″ L × 19″ W × 49″ H. Dedicated electrical circuits are required. Confirm voltage and amperage requirements with Oxygen Health Systems during the pre-purchase process.

Doorway access. The two-piece modular configuration was specifically developed for facilities where a single-piece chamber cannot be delivered through standard doorways or elevators. If your facility has standard US doorways, confirm the delivery configuration before finalizing the purchase.

Noise profile. At under 60 dB in operation, the Vital Sphere 360 is compatible with clinical environments where ambient noise is a patient experience consideration. The auto-depressurization system maintains this noise profile at session end, unlike manual depressurization on competing chambers.

Compliance Documentation

The Vital Sphere 360 carries CE certification and is manufactured under ISO 9001, ISO 13485, and ISO 14001 certified quality management systems. The chamber is built in an ASME Code Compliant facility. For clinical and commercial installations requiring ASME documentation for fire marshal review, building inspection, or facility accreditation submission, contact Oxygen Health Systems for current certification documentation applicable to this model.

Common Questions from Clinical Buyers

Is the Vital Sphere 360 a monoplace or multiplace chamber? It can be configured as either. The standard setup is a single-seat configuration with a motorized reclining chair. It can also be set up as a dual-seat configuration for shared sessions. Confirm the intended setup at time of order.

Is the BIBS mask system included as standard? No. The BIBS mask system is an optional upgrade. The standard configuration includes oxygen headsets, nasal cannulas, and facemasks that deliver 95% oxygen. For programs requiring CO2 scrubbing and inhalation-triggered oxygen delivery, specify the BIBS upgrade at time of purchase.

Does the chamber require special venting for clinical installation? No. The Vital Sphere 360 does not require special venting and maintains stable room oxygen levels during operation, which simplifies facility approval and installation compared to chambers that require oxygen management infrastructure.

What is the noise level during operation and depressurization? The system operates at under 60 dB, quieter than normal conversation. The auto-depressurization system maintains this noise level at session end, making it appropriate for installation in shared clinical spaces without acoustic modification.

What is the price of the Vital Sphere 360? $63,900. Financing is available starting at approximately $1,386 per month. Contact Oxygen Health Systems for financing options and current promotional pricing.

What is the warranty? Three years on all Oxygen Health Systems chambers, covering manufacturing defects in parts and components. US-based technical support is included.

Clinical programs that invest in the right equipment from the start run better programs. They serve more patients per session, accommodate the full range of patients who need the therapy, and operate without the noise and turnaround constraints that limit what lesser-specified equipment can do.

The 57″ Vital Sphere 360 is built for that standard. Practices evaluating a more accessible soft chamber entry point may also want to review the MC 4500U Wheelchair-Ready Vertical Chamber, which serves mobility-focused patients at 1.3 ATA and a significantly lower investment.
