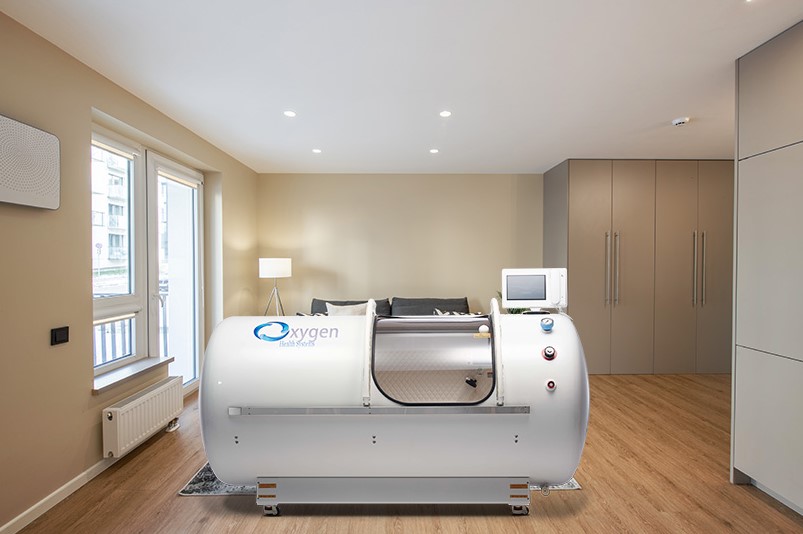

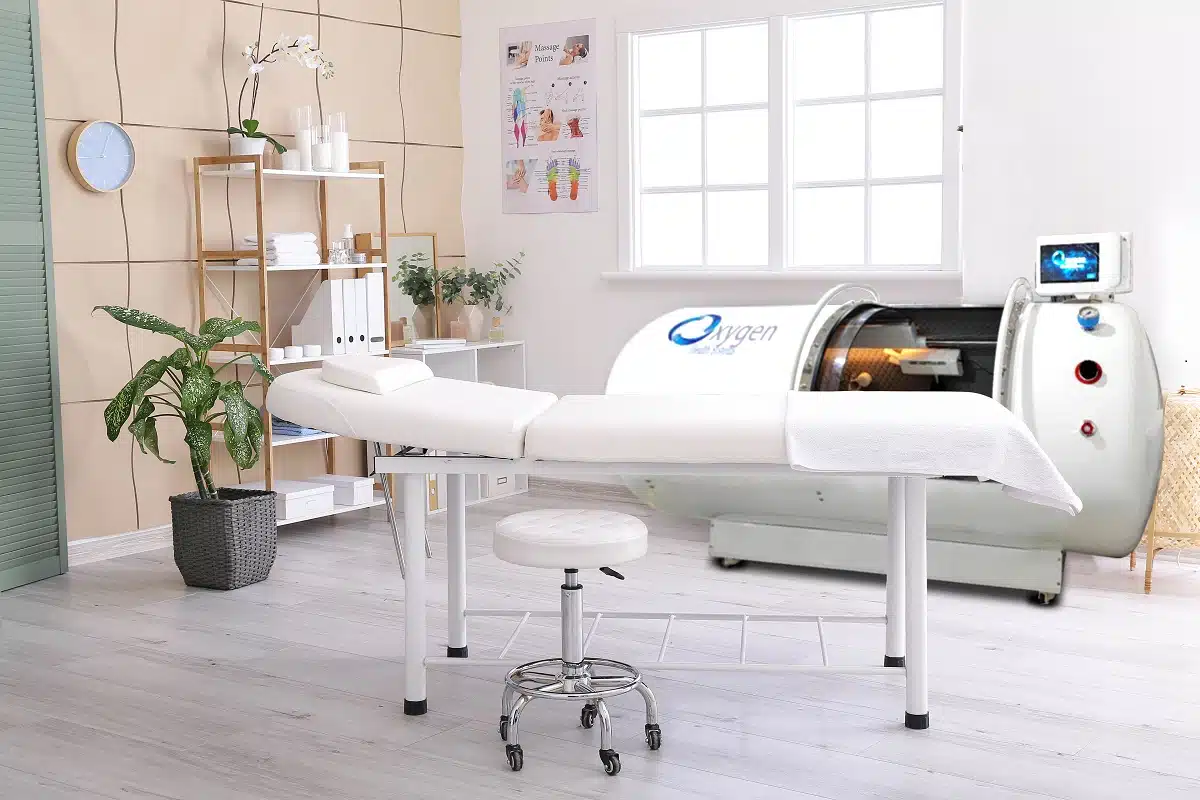

40"D | 1.6 ATA | Hyperbaric Hard Shell Oxygen Chamber

This extra large 40-inch diameter Hard  Hyperbaric chamber is our largest hardshell hyperbaric chamber provided with advanced touchscreen controls and integrated progressive controls that allow the selection of individual pressures up to 1.6 ATA. This chamber comes with an integrated all-in-one unit providing both Our system is unique in the industry of high-end hyperbaric's as it does not require any special venting due to the fact that the net room oxygen does not change as the unit is operated. Oxygen Health System's hyperbaric hard chambers are designed for safety, durability, comfort, and ease of entry and exit along with many more advanced features. This hyperbaric hard chamber system is designed for practitioners or home users who want a more advanced system that allows for higher pressurization in a hyperbaric therapy system and that also provides a simplified single-user operation. Just power it up, get inside, and hit the button to start therapeutic sessions. Clients of all shapes and sizes will love this system for its expansive roominess and the luxury it can provide in an environment of everyday and all-day usage.



Call Direct 1 630-634-7500 for questions!

We have multiple options for Financing.

1) Apply for personal financing through uplift or through our 6-month in-house program contact us for details.

2) Apply for Business Financing through our Speedy Approval Finance company at the following address, Our Super low pricing won't last forever so take advantage of this opportunity today.

See our financing page

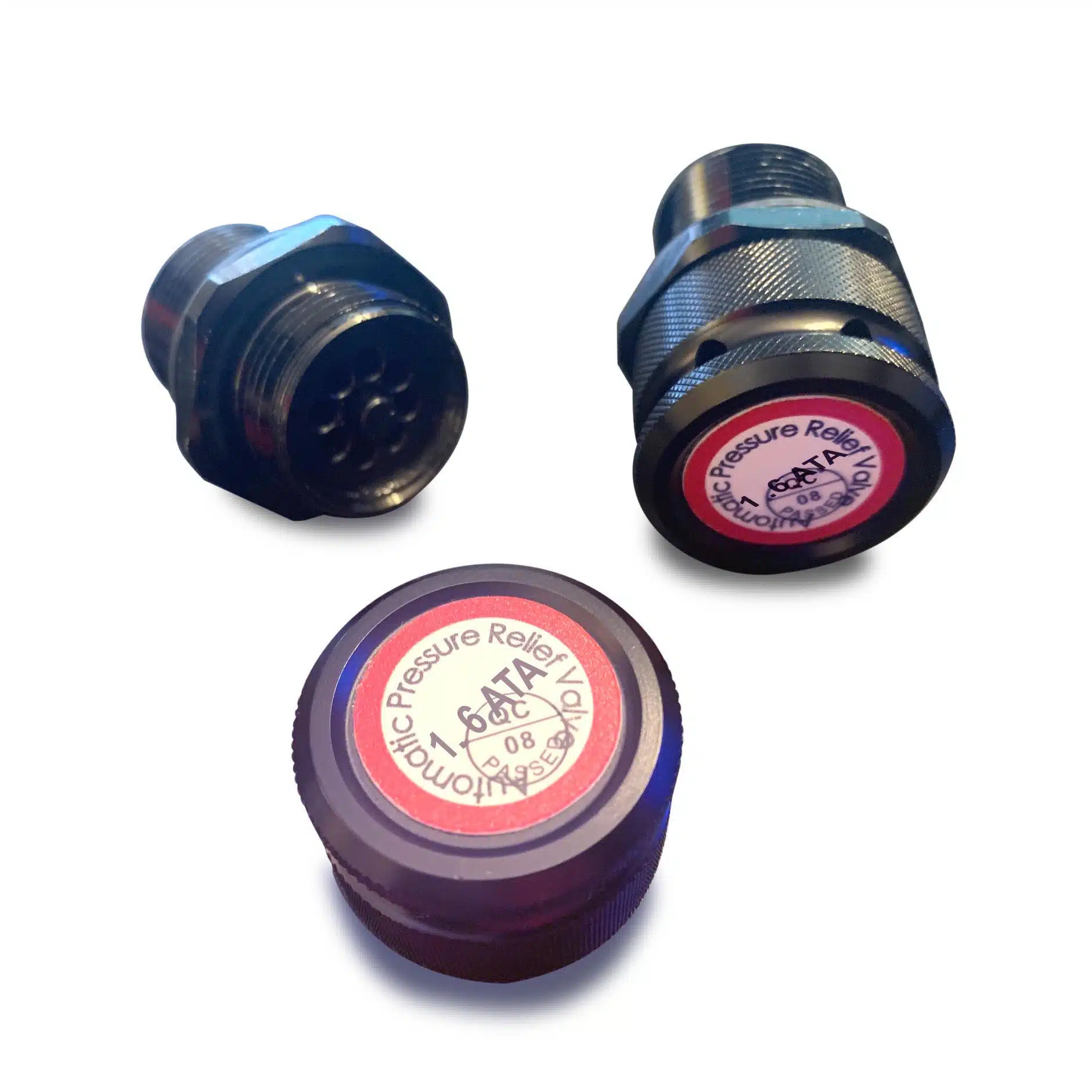

The All-in-One Air/Oxygen system provides an all-in-one solution with comfort in mind. Our 40” diameter steel hyperbaric chamber is highly versatile and allows physicians to treat at up to 1.6 ATA pressure. The combination of our chamber and specially selected equipment allows breathing at levels up to 95% oxygen. We continually strive to improve an already incredible product by adding new features such as our negative ionization system now integrated as a base feature. We have recently made available noiseless pressure relief valves that significantly reduce the sound produced by hyperbaric operations which can be as high as 68 dB.  We also, provide the option to integrate Air Conditioning systems for those who require this enjoyable amenity. Our hardshell hyperbaric chamber mitigates a number of the negatives associated with their use in private practice. There is no need for costly installation, and our chamber itself is quite compact – perfect for practices already short on space. The chamber is simple to operate and has very low running costs, the only consumable being electricity. Free Inclusions We understand our customers. Medical equipment needs to work from day 1, which is why we include everything required to operate the chamber smoothly, ensuring a positive experience for both physician and patient.

➙	Internal control panel allows for single-person operation from the inside of the unit.
➙	Easy-slide extra wide polycarbonate cabin door for easy access. Activated by pressure, with automatic release upon de-pressurization.
➙	The automatic air pressure system, the door is sealed by pressure.
➙	All- in- one-machine:(included  10 Liter/minute Oxygen generator, Dehumidifier, and air compressor)

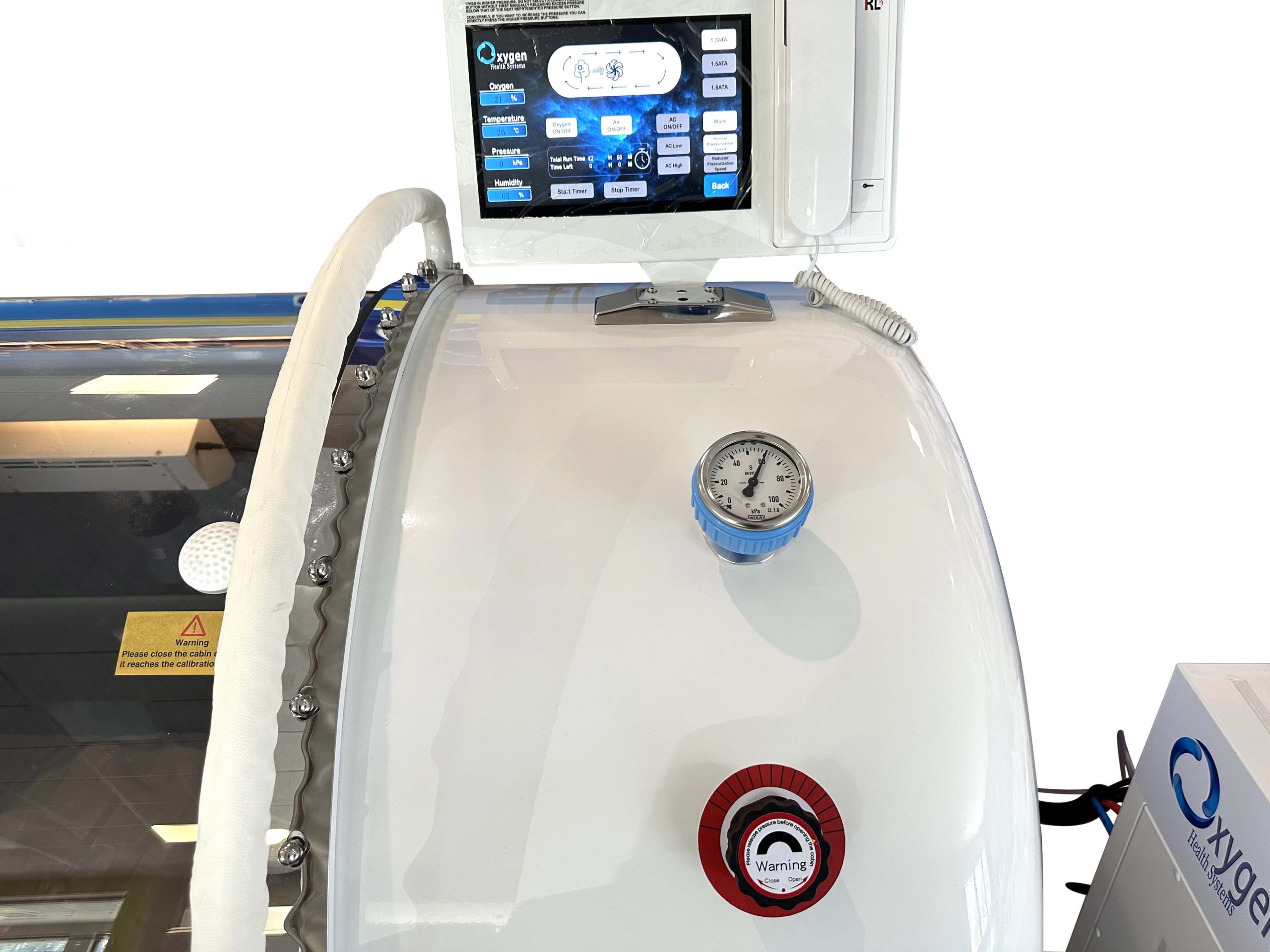

➙	Digital touch display and control systems allow the practitioner to see current interior Pressure, Air Temperature, Humidity, and  Percent Oxygenation.

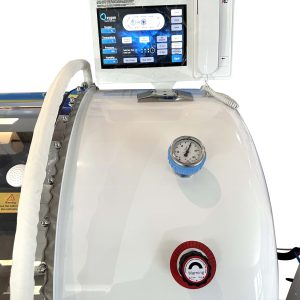

➙	Interior and exterior pressure gauges.
➙	The timer on the touchscreen digital control allows automatic programming of session time.
➙	Communication interphone with attendant alerting.
➙	Grounding Mat for a static free session.
➙	Oxygen breathing headsets, nasal cannulas, and facemasks for ability to treat at 95% oxygen.

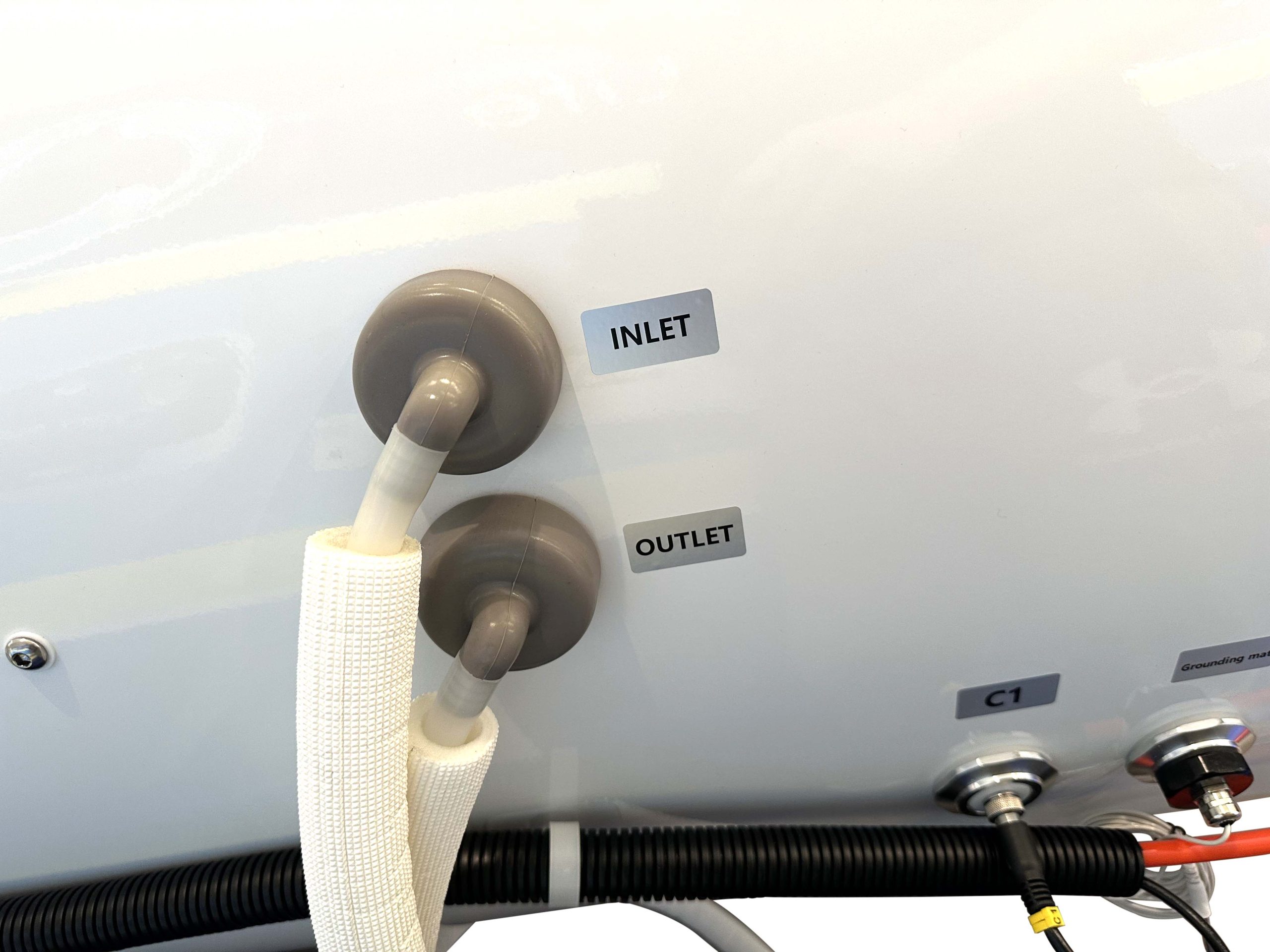

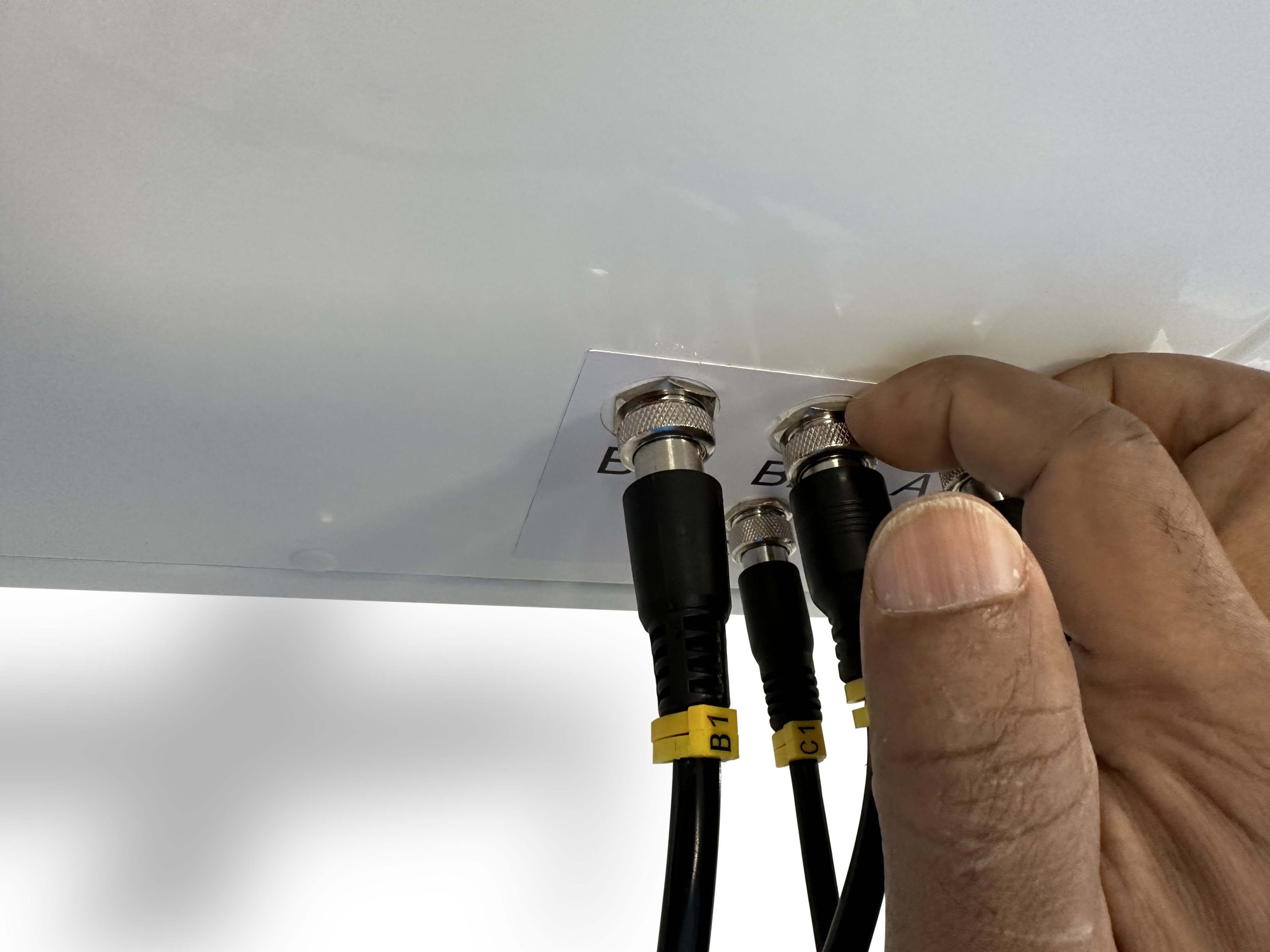

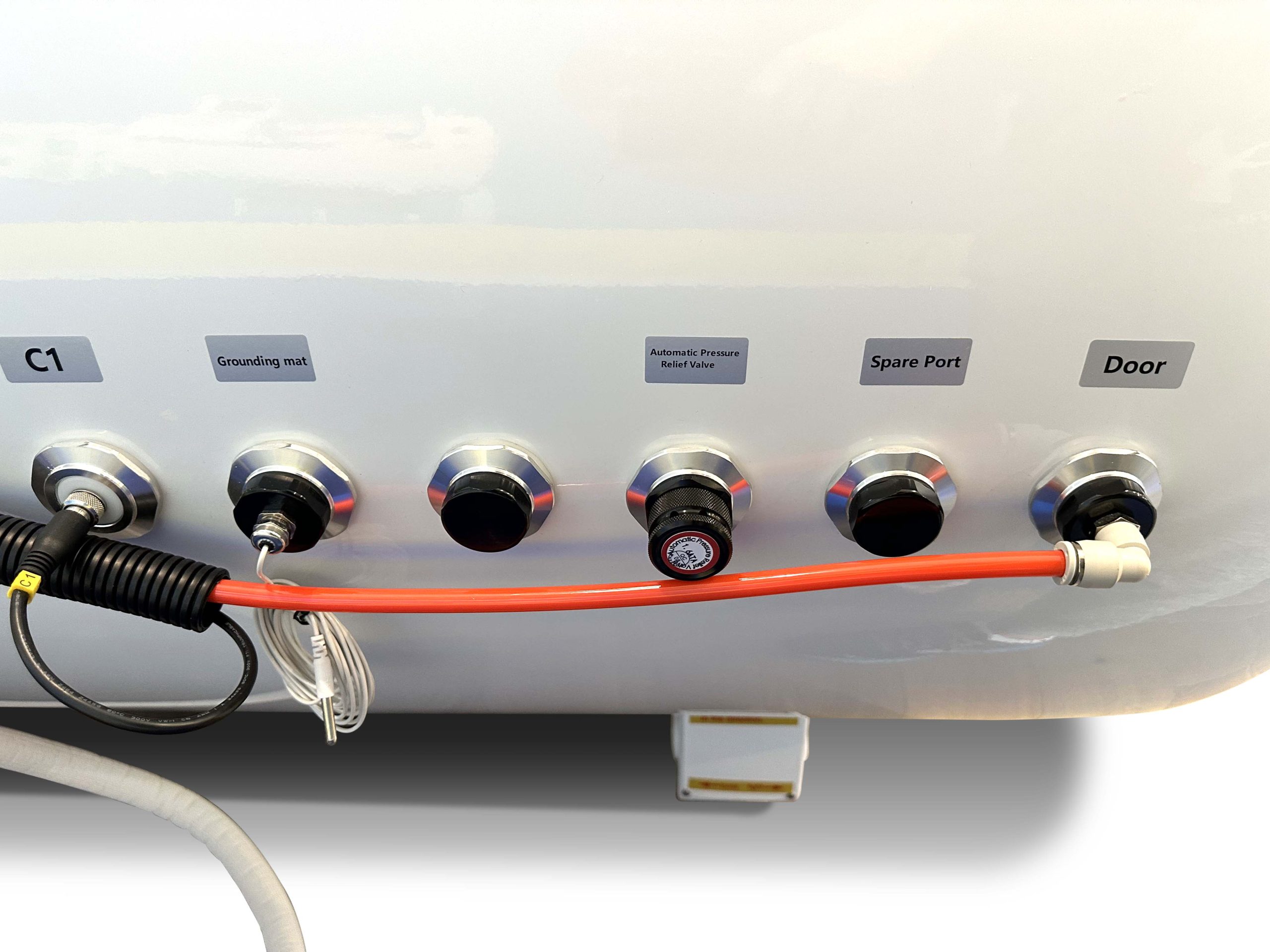

➙	Expansion port allows for secondary devices to be connected or allows for future upgrades of other alternative devices if required.
➙	Negative ION UNIT to enhance treatment. Due to the addition of the negative ion device, our customers can experience the relaxing benefit of fresh air similar to being on a beach.  This option would allow customers to receive pure oxygen containing negative ions at high pressure and promote the body’s self-renewal process; enhance the vitality of immune cells.

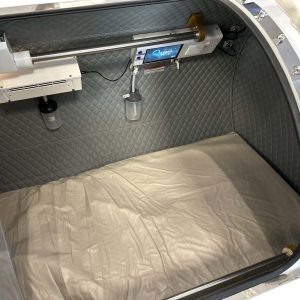

Optional Addons: Now available we have the option to order an Air Conditioning system that extends the cooling comfort well beyond that of the air cooler. We are the only hyperbaric manufacturer to offer an air conditioning system for use with Hyperbaric Oxygen Chamber Systems.  International Sales: We sell internationally and can provide our systems to your international voltage and plug type requirements. A Positive Patient Experience Our HBOT chamber comes equipped with all of the essentials to ensure your sessions run smoothly. The interior is designed to be as comfortable as possible, with our large window positioned to minimize the effects of claustrophobia and keep the patient relaxed. Optimal Air Conditioner The inclusion of a dehumidifier (built into the all-in-one compressor) unit is a great addon that is free with this unit. However, In a confined space or where the room temperature is not adjustable to the optimal 68 degrees or lower, the treatment might become slightly uncomfortable for some patients. The optional inclusion of an air conditioning unit can be integrated and allows you to maintain a more constant temperature inside the chamber is available at an additional cost.  Please speak to our sales team if you have an interest in our full air conditioning system. Interior Comfort & Operation The interior is padded and contains a soft mattress and pillow. The operation of the hyperbaric chamber can also be controlled from inside, with basic controls and emergency alarm located within reach. Entertainment The standard treatment time of 60 – 90 minutes can have a positive impact. Our chamber comes with a dim interior light to allow patient relaxation, while still allowing them to read a book.  For Practitioners Our Hyperbaric Chamber is designed to be easily controlled and allows you to be in constant contact with the patient. The ease of operation requires very little training, and the sessions can easily be managed by staff. For maximum effect, each session generally lasts 60 – 90 minutes. Please speak to our sales team about our Doctor's only specific Add-on features. Many of our practitioners are concerned about the noise that a Hyperbaric Chamber might make in their office environment. The noise levels from our systems are well below that of the standard at 52 dB and are reduced also with our silent pressure release valves which is another distinguishing benefit to our system. For Pets Accompany your pet inside the chamber so they can enjoy the benefits of Hyperbaric Oxygen. Also, ask about our smaller pet chambers. Ergonomic Chamber Control Our user-friendly control station is designed to ensure simple operation and management. The functional layout allows full management and oversight of the chamber, controls, and communications. Chamber features also allow one person to operate the chamber without assistance if required for home use. Emergency & Preventative Measures The hyperbaric chambers are equipped with numerous safety features for peace of mind for both practitioner and patient. Whilst hyperbaric chamber use is considered very safe in the medical industry, there is always the risk of complications. We have invested heavily in measures to ensure patient safety, such as:

1.	More gradual pressurization of the chamber; allowing for staff assessment and discomfort checks.
2.	Emergency Alarm control for the patient to alert staff via interphone.

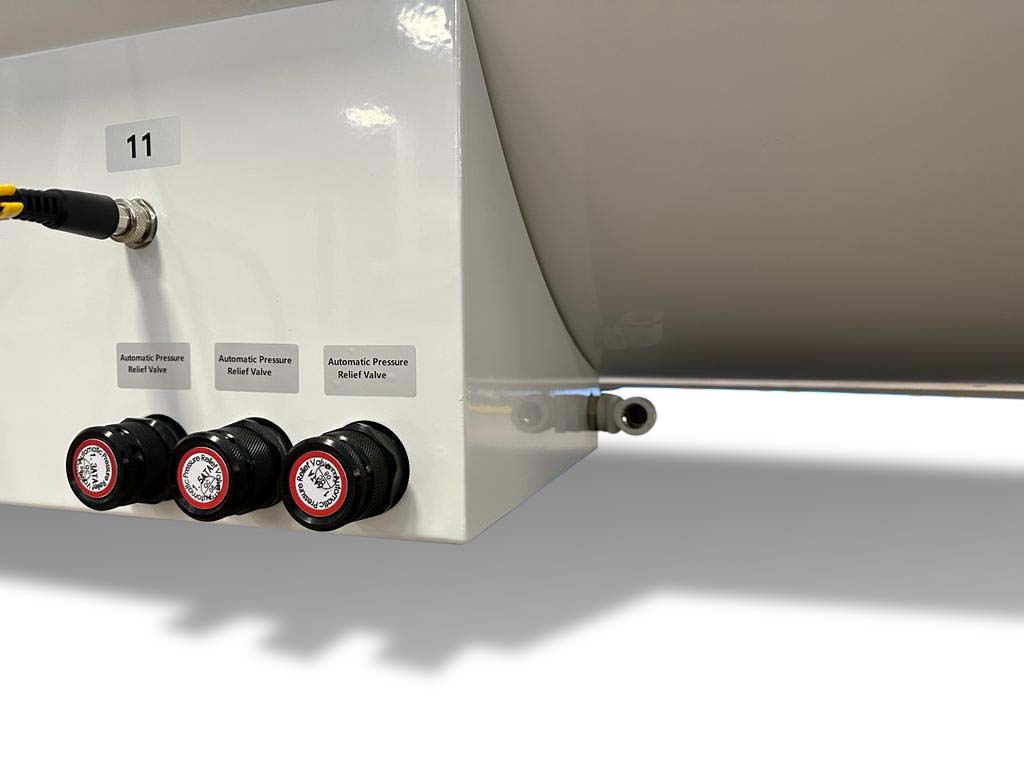

3.	Emergency Pressure Relief Valve; reduces pressure in the case of an emergency.
4.	Intercom phone system; for ease of communication with patients.
5.	Easy Entry and Exit via our unique sliding door.
6.	Interior controls all for single user operation of all features without supervised assistance.
7.	All our hard chambers have an interior grounding mat to mitigate any static charge that could occur during your session.
8.	The system slowly depressurizes in a safe manner if power is lost.
9.	Internal Emergency door release button

Operational Costs
There are no consumables required to operate the hyperbaric chamber, only the electricity to run the air compressor/oxygen concentrator/air cooler (single machine). Per hour cost for electricity is roughly 39 cents per hour.   Warranty We take pride in our product quality and all hyperbaric chambers come with our standard 36-month materials and workmanship warranty.

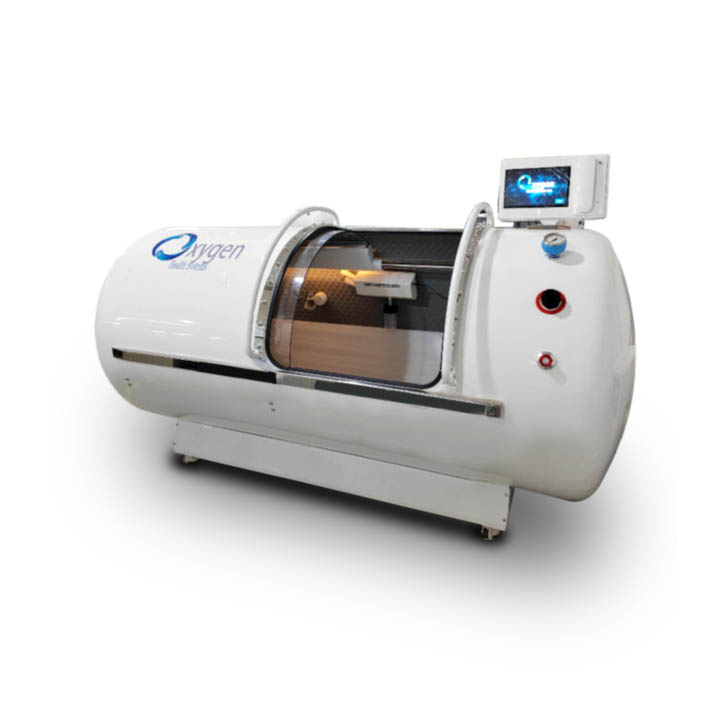

OXYGEN HEALTH SYSTEMS 40" HARDSHELL HYPERBARIC OXYGEN CHAMBER SPECIFICATIONS
SPECIFICATIONS	WEIGHT	POWER	SIZE
Chamber	436 lbs	N/A	Length: 88 Inches Diameter: 40 Inches
CHAMBER FEATURE ★ 1.6 ATA | 2.5 mm thick 304 Grade Stainless Steel  ★ 10mm thick Polycarbonate window from Bayer Germany mounted on Heavy steel rods with ball-bearing rollers ★ Incremental Control of pressurization and depressurization. ★ Interior & Exterior Emergency pressure Relief valve ★ Can Be Operate without Assistance ★ Interior Lighting & Alarm System ★ Allows Incremental auto controlled session time up to 2 hours by Timer ★ Optional progressive control feature to dial in a specific pressure ★ Warranty 3 Years
All-In-One Oxygen Concentrator	176 lbs	1200 Watt	30" L x 18" W x 28" H
OXYGEN CONCENTRATOR FEATURE ★ 15 LPM Total Oxygen Flow ★ 70 LPM Air Flow ★ ≥95% Oxygen Purity ★ Oil free ★ Non-toxic/eco-friendly ★ Quiet ★ Super absorption activated filters ★ Double inlet and outlet filters ★ Integrated Dehumidifier ★ PSA molecular sieve high technology ★ Non-toxic and eco-friendly ★ Two continuous flow oxygen generators are included with this system,  no oxygen tank required
Total system Weight	572 lbs
Total system Watts		1200 Watt
All Equipment Voltage	110v-120v ( 220V available upon request)
Certificates	CE, ISO9001, ISO14001, ISO13485
Optional Features our Enhance Cooling system

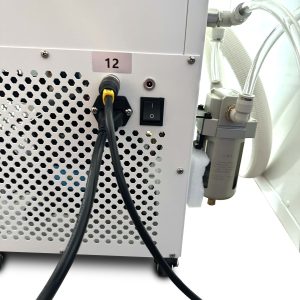

AC Unit	67 lbs	550 Watt	13"W x 16"L x 22"H
AC FEATURE ★ Temp. Range（℃）: -5~30 (Water)
Optional Upgrade of Progressive Control Board
Progressive Control
★ Pressure can be control from 1.3 ATA to 1.6 ATA with 3 selectable settings

Oxygen is the final electron acceptor in the Electron Transport Chain, which is where all of the ATP is produced. This is known as aerobic respiration, or how our cells breathe. Oxygen is essential to life, but it is how it affects the function of every cell in the human body that makes it necessary for life. Without oxygen, we can't make energy for our brain, organs, or any tissue. The more oxygen we can deliver to our tissues, the healthier, energetic and mentally well we feel. It has a very high affinity for electrons (high electronegativity), making it a good electron acceptor and perfect in its role. In summary, Oxygen allows us to make ATP, which is the energy currency of our body, thereby required by all cellular processes to function and to support normal bodily and brain function, including organs, bones, joints, muscle, etc.

DISCUSSION OF DR. DAVE DORNFELD

Q & A Safety Question:

Do I need to install firewalls for using this system?

Although, it's always great to take precautions. Our system runs the interior of the chamber at 40% and the exterior of the chamber will have a net oxygen percentage of a bit lower than when they started their session. So in your room, the oxygen that is converted from the room mixed air into 95% oxygen that will enter the chamber resulting in 40% Oxygen inside the chamber that will evacuate and redistribute into the room resulting in the same percentage of oxygen or lower than the room originally started with. i.e the net oxygen percentage in the room itself is never increased.   So, the difference between our system and hospital grade chambers is that they use compressed oxygen tanks that are very dangerous, and the net oxygen evacuated from the chamber would raise the room oxygen percentage if the output of the chamber were to vent inside the room.

How do oxygen molecules get 400% deeper into your tissues as they do with Hyperbaric Oxygen Therapy?

They actually shrink under this pressure and can squeeze through constricted blood vessels, inflamed tissue, cross the blood-brain barrier, enter lymph nodes, cerebrospinal fluid, and musculoskeletal system. Essentially, oxygen is delivered into all of our tissues, including areas where circulation is diminished, which is an extremely important component of healing as oxygen is essential for the function and maintenance of every cell in our body, regardless of whether it's an organ, muscle or bone. This is analogous to what you see in a can of soda as the CO2 particles are under pressure, and therefore decrease their sizes enough that they dissolve into the liquid. When you pop the can open, the pressure is released, the CO2 particles increase in size and you see the fizz. This is exactly what happens to your oxygen molecules as they decrease in size under pressure and dissolve into the blood plasma. This exponentially increases oxygen delivery through the body and makes it possible for oxygen to enter inflamed tissue or tissue that is starving for oxygen (hypoxic) to support optimal cellular activity.
