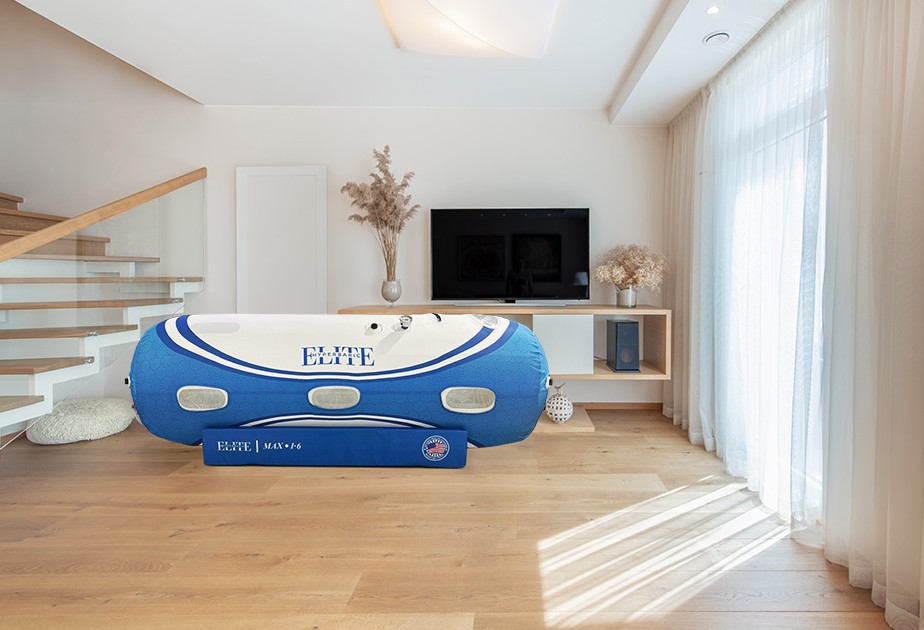

Elite Max Hyperbaric Oxygen Chamber
Available in 1.4, 1.5, and 1.6 ATA · 32-inch soft-shell system
- Trusted by top athletes
From $14,500
Contact us for current pricing and configuration
A spacious soft-shell chamber system designed for home or professional wellness settings. The Elite Max pairs a 32-inch interior with a standard 10 LPM oxygen concentrator, guided setup, and thoughtful details for easier entry and operation.
Available pressures
1.4, 1.5, and 1.6 ATA
Maximum pressure
1.6 ATA
- Specialist guidance
- Delivery coordination
- Configure your system
Choose the right Elite Max setup.
Choose the Elite Max pressure configuration that fits your needs: 1.4, 1.5, or 1.6 ATA. Speak with a specialist about compatible equipment and options; confirm pricing and availability for your configuration.
Standard system
A complete starting setup for the Elite Max chamber.
- Elite Max · 1.6 ATA
- 10 LPM oxygen concentrator
- Oil-free air compressor
- Micron-level air filtration
Optional equipment
Ask about the All-in-One system, ionizer, and air-conditioning options for your space.
- Product details
Designed around comfort and visibility.
A spacious 32-inch soft-shell chamber, clear viewing windows, and visible pressure gauges support a considered setup at home or in a wellness space.
32-inch chamber
A roomy soft-shell interior designed for a more comfortable home or professional setup.
Seven viewing windows
Multiple windows bring light into the chamber and make it easier to see inside.
Pressure you can monitor
Internal and external gauges make chamber pressure visible during a session.

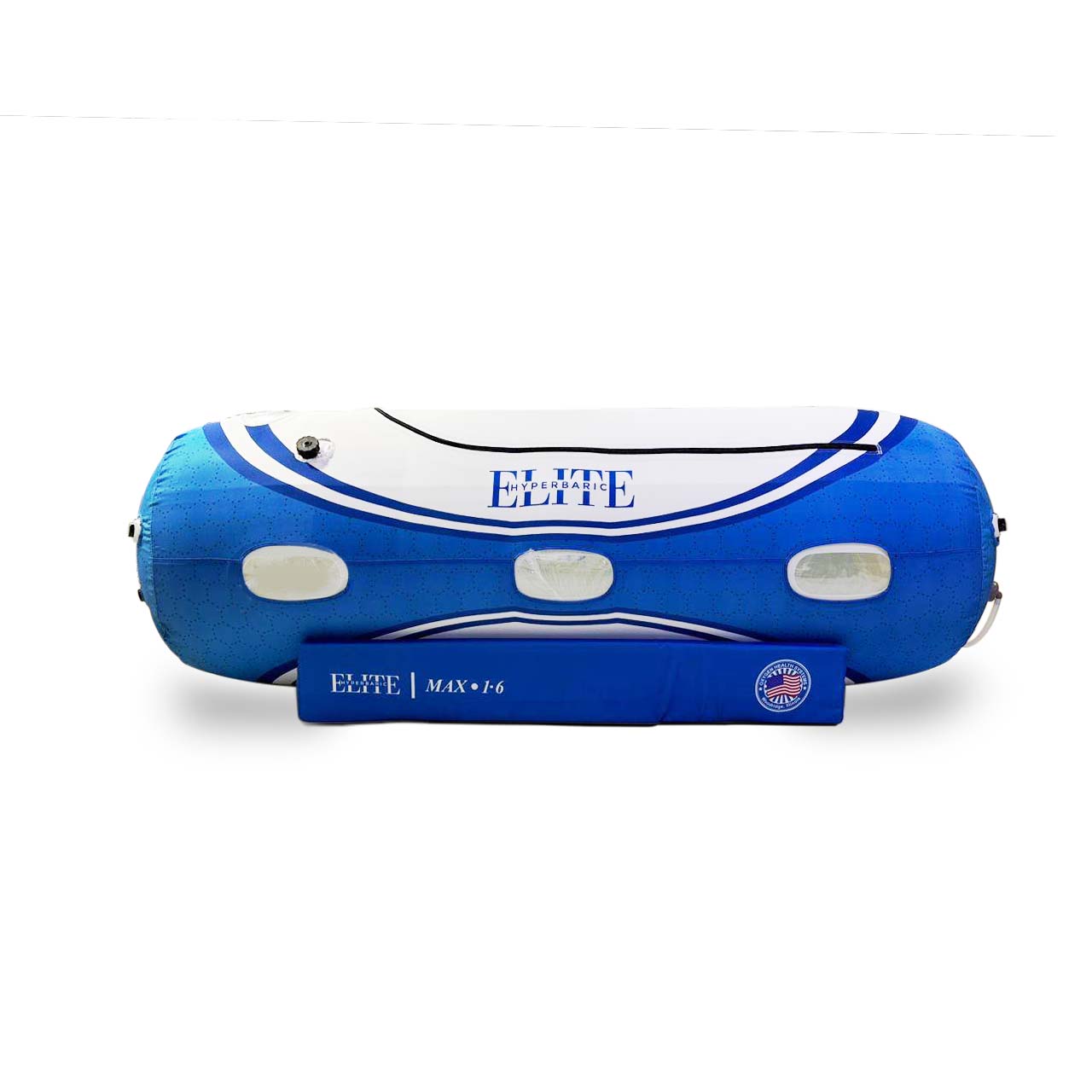

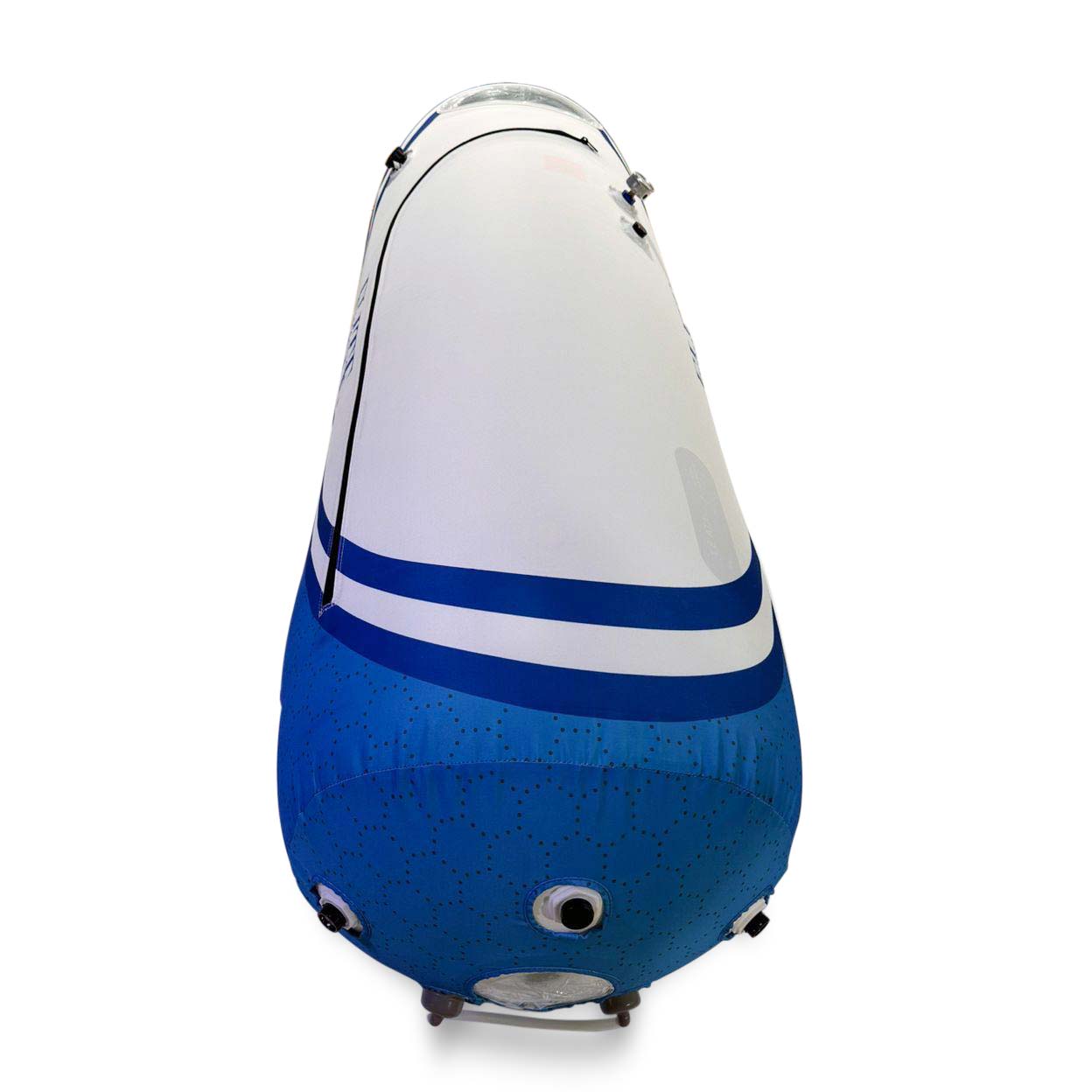

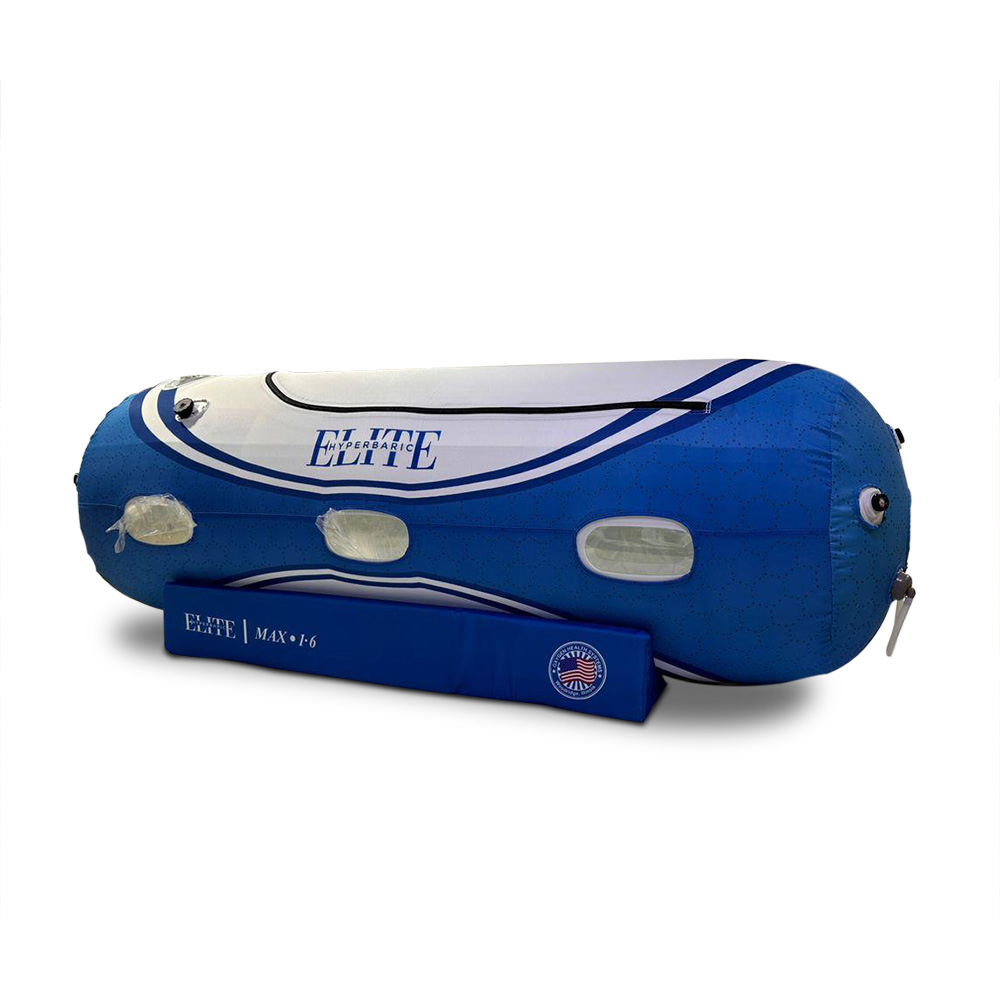

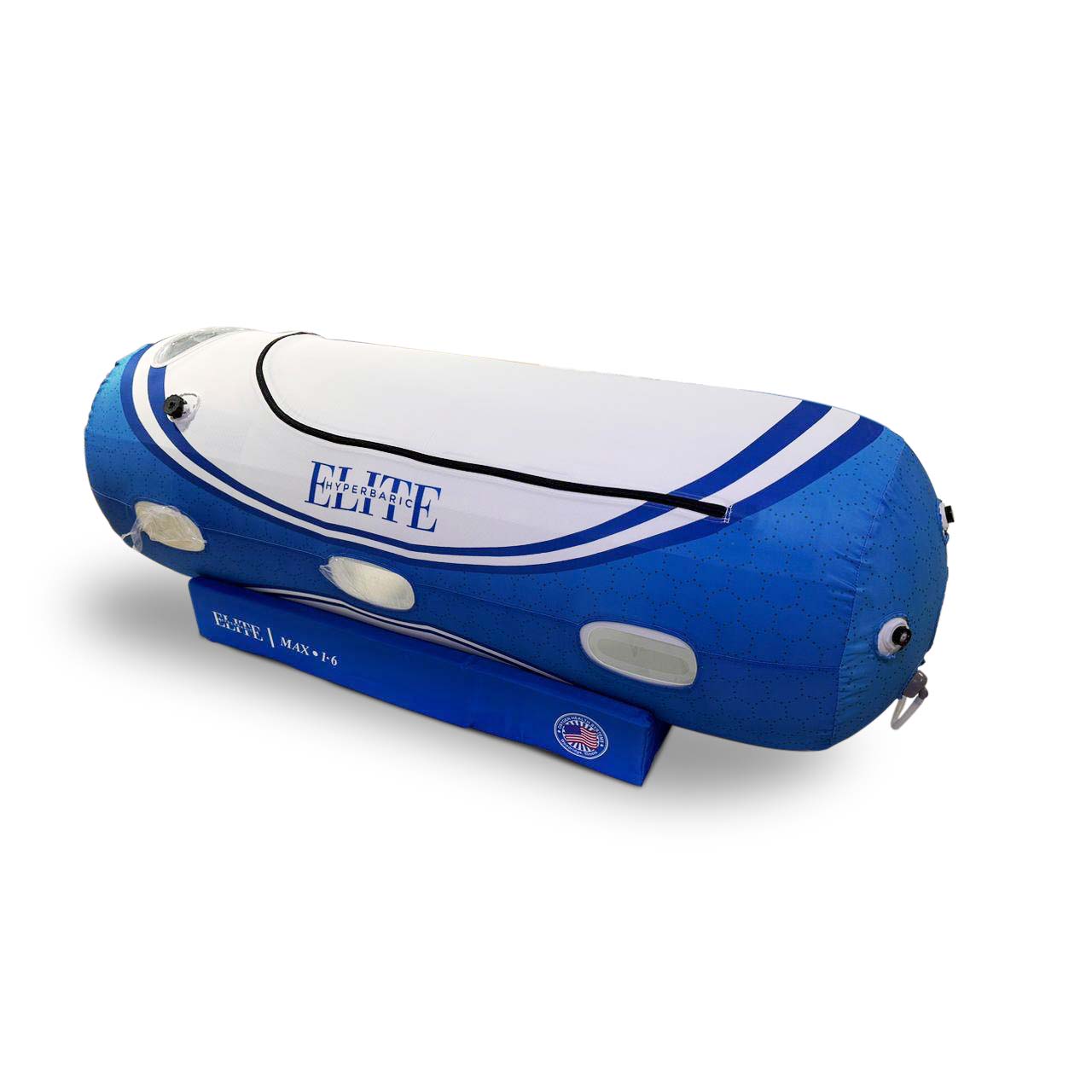

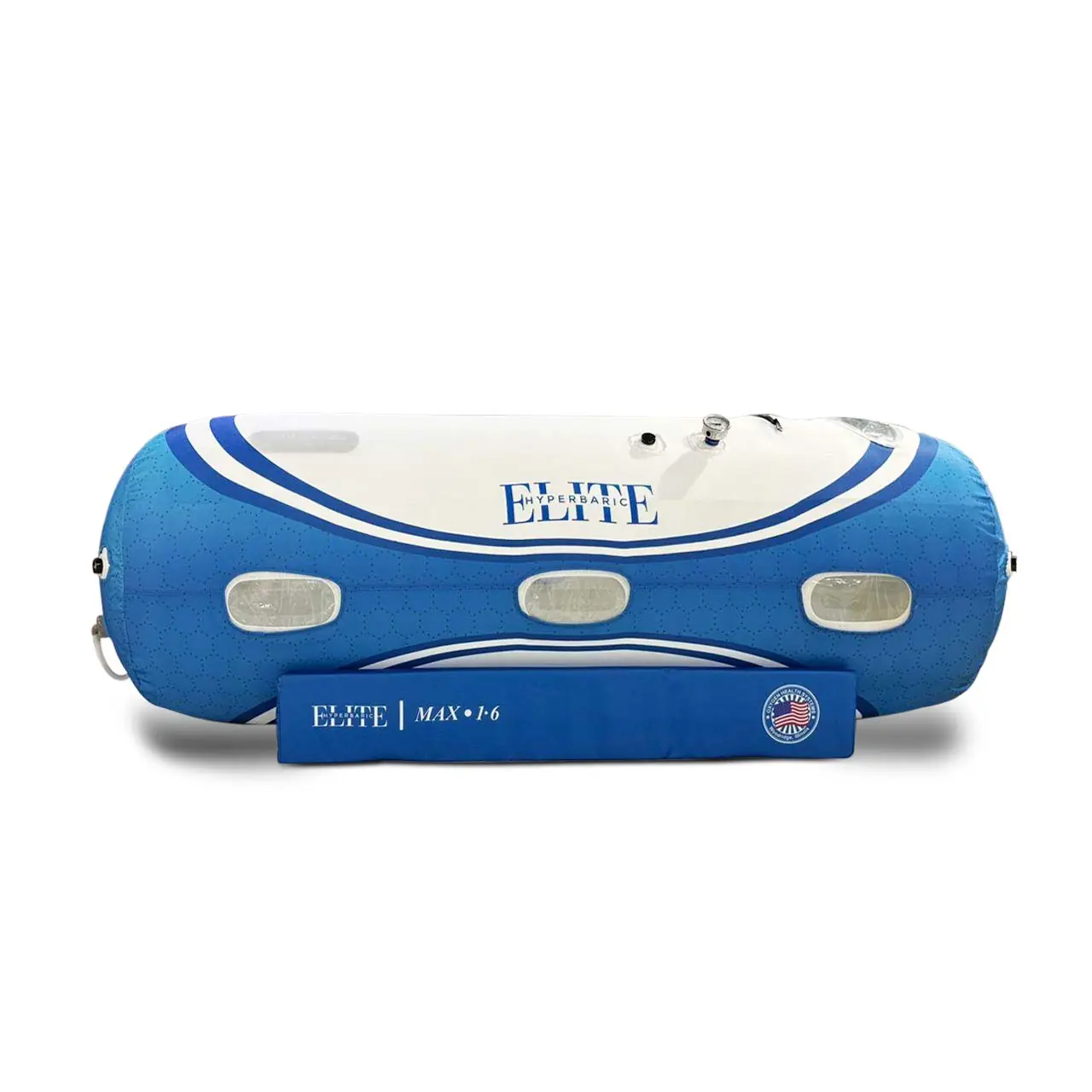

- Product photos
See the chamber up close.
Browse the Elite Max gallery for additional product views and details.
- ATA · Atmospheres absolute
How Elite Max compares with 1.3 ATA chambers
Compare maximum pressure ratings on the same scale.
+0.3 ATA maximum
1.3 ATA chamber
Maximum pressure reference
1.3 ATA · 32 kPa gauge
Elite Max
Maximum operating pressure
1.6 ATA · 62 kPa gauge
1.0
1.3
1.4
1.5
1.6
kPa figures are approximate gauge-pressure equivalents relative to 1.0 ATA ambient pressure. Maximum pressure ratings are product specifications, not treatment recommendations. Confirm operating guidance with the manufacturer and a qualified healthcare professional.

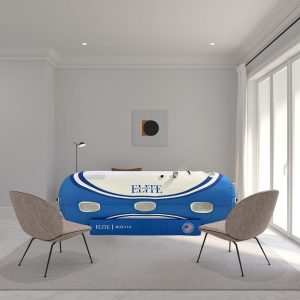

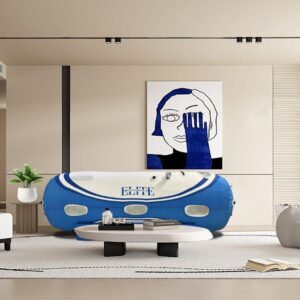

- Made for everyday spaces
Room to settle in.
Power to go further.
The 32-inch Elite Max is designed for a comfortable, user-first setup. Its roomy interior can accommodate two people, such as an adult and child, or give a single user space to sit upright. The included 10 LPM oxygen concentrator delivers 95%+ oxygen, with mask, cannula, or headset options.
- 1.6 ATA maximum operating pressure
- 32-inch diameter with space for two
- 10 LPM oxygen concentrator, 95%+ oxygen
- Internal metal frame for added stability
- Multi-pressure valve system
Three pressure settings. One chamber.
Get the flexibility of three chamber pressure levels in one system. Use the multi-pressure valve to select 1.4, 1.5, or 1.6 ATA, with redundant regulators helping maintain your selected pressure.
Three pressure experiences. One chamber.
1.4
ATA
5.9 PSI · 41 kPa
Lower-pressure option
1.5
ATA
7 PSI · 52 kPa
Mid-range option
1.6
ATA
9 PSI · 62 kPa
Maximum-pressure option
Controlled pressure changes
Fully adjustable open / close valve.
Adjust the valve to control the speed of pressurization and depressurization. Fine-tune airflow to choose a gradual or faster pressure change for each session.
Variable speed, adjusted right at the chamber.
Chamber pressure monitoring
Internal and external pressure gauges.
Read chamber pressure from inside or outside with dedicated high-precision gauges. Both readings stay visible throughout the session, so you can monitor pressure without interrupting treatment.
Standard feature
Redundant silent automatic pressure relief valves.
Automatic relief valves provide quiet pressure control, releasing pressure at the selected setting without needing to adjust the open / close valve by hand.
Holds set pressure
Redundant pressure regulating valves
Two independent regulating valves cap the chamber at the selected pressure. If one valve sticks, the second helps keep pressure in range.
Self-sustaining operation
Internal / external release valve
Depressurize from inside on your own schedule, or let an attendant release pressure from outside. No second person is required to end a session.
Rapid depressurization
Emergency pressure relief valve
A push-button release vents the chamber quickly in an emergency, so you can open the zippers and step out.
Continuous fresh air
CO2 exhaust through relief valves
Airflow from the compressor helps move exhaled carbon dioxide out through the relief valves during a session.
Built for expansion
Multiple spare ports
Additional sealed ports let you add compatible accessories, such as air conditioning, extra oxygen lines, or monitoring equipment.
Pressure settings and system features are subject to the selected chamber configuration. Confirm operating instructions and compatibility with the product team.
Engineered to hold pressure for decades.
Proprietary dual-zipper system
A 61-inch dual YKK zipper system is protected by a cover zipper that adds 20% more strength, creating an anti-leak seal with silicone and triple-reinforced fasteners.
Internal & external pressure gauges
High-precision gauges inside and out let you read chamber pressure at any time, helping avoid early exits and possible chamber damage.
Emergency pressure relief valve
Press the interior release button to depressurize quickly, then open the zippers to exit. Relief valves operate from both inside and outside.
Triple heat-welded seams
Triple- and penta-welded seams with no toxic glues, built to last 25 to 30 years with continuous use.

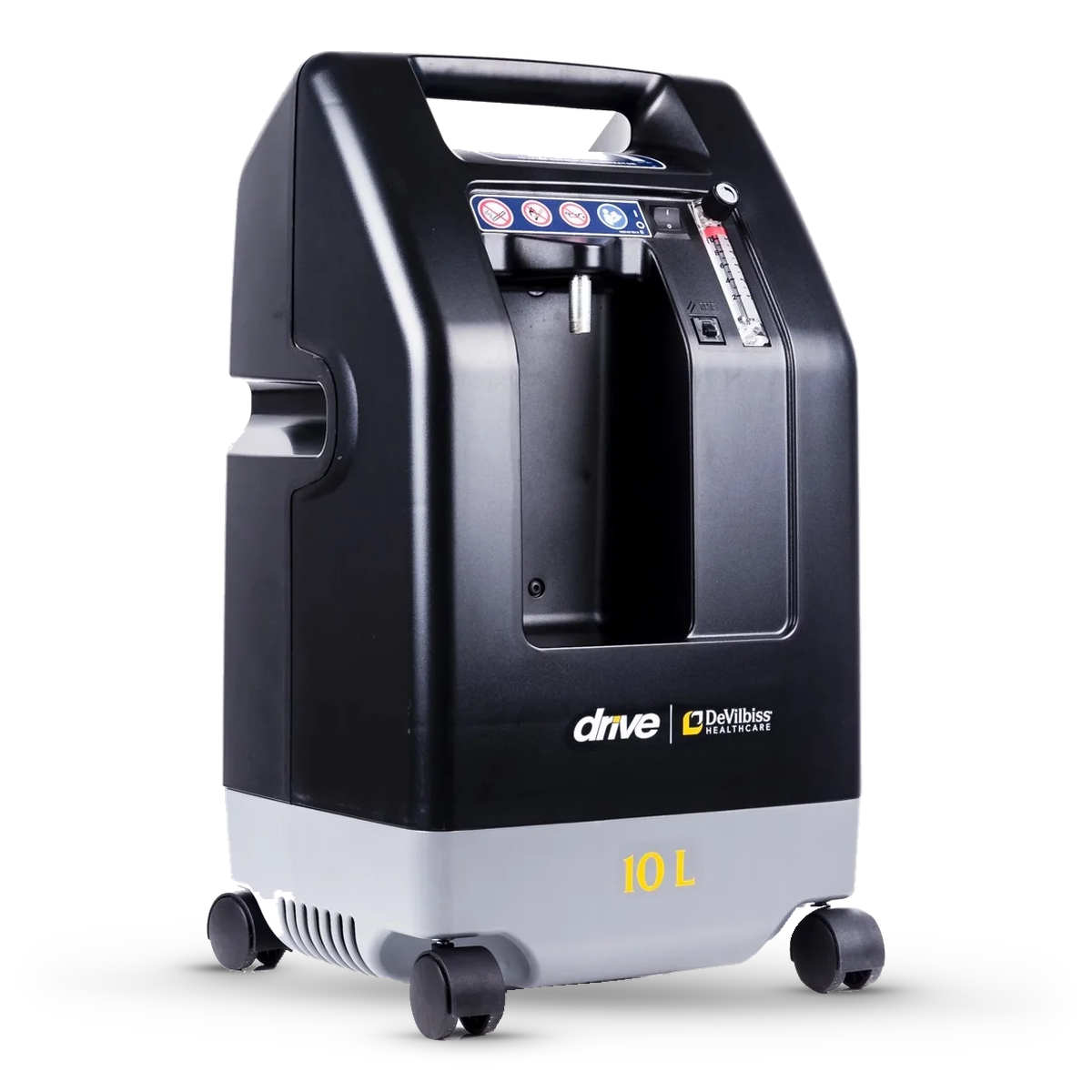

- 10 LPM · 95%+ oxygen purity
- Drive Medical · 10 L
- Oxygen supply
A dedicated
oxygen concentrator.
The standard Elite Max configuration includes a DeVilbiss oxygen concentrator. Its listed output is 10 LPM at 95%+ oxygen purity; confirm the supplied model and accessories before ordering.
10 LPM
Output
95%+
Oxygen purity
Included
Standard system
- Included equipment
- Built for the chamber

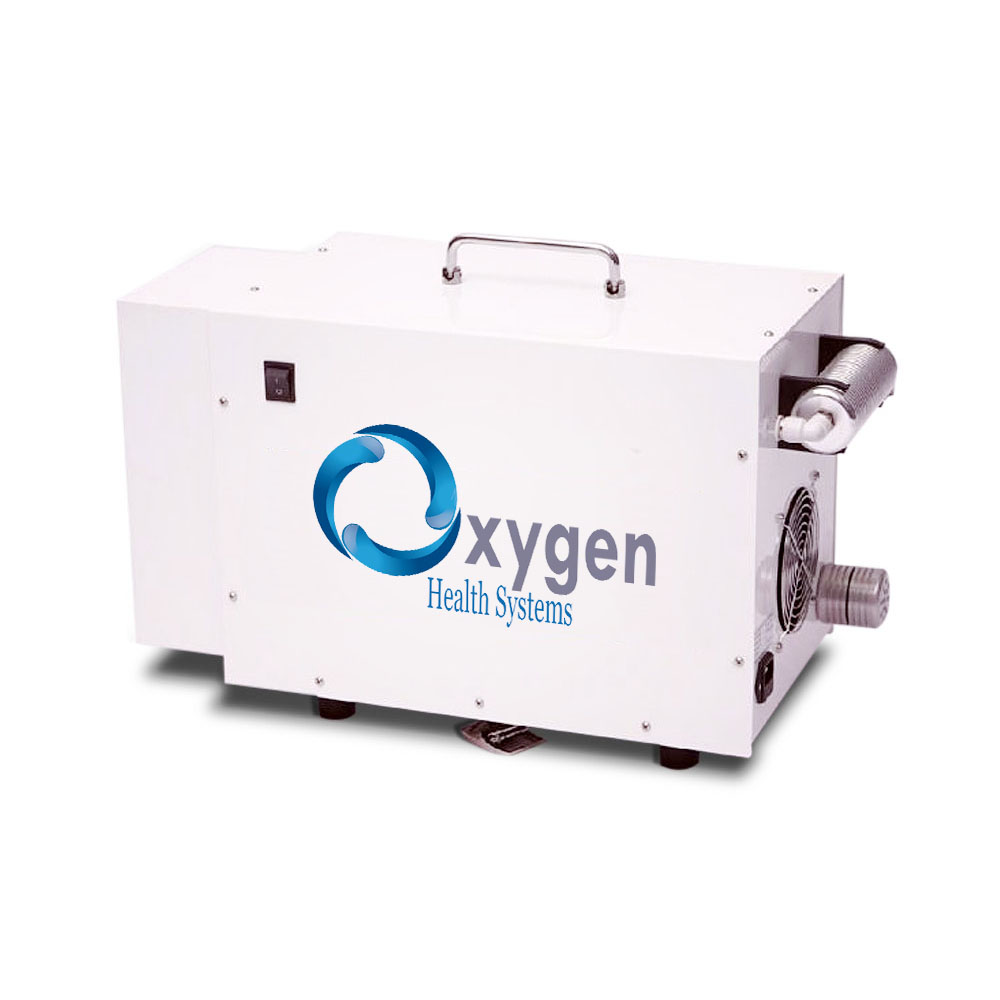

An oil-free compressor for chamber airflow.
The Elite Max standard system uses an oil-free compressor with micron-level filtration to supply airflow to the chamber. Confirm current component specifications with a specialist.
Oil-free
Compressor type
Micron-level
Air filtration
Included
Standard system
- Optional equipment
- Chamber air comfort
A more comfortable chamber environment.
Explore optional air-conditioning and air-treatment upgrades for your Elite Max. Equipment shown is illustrative; ask a specialist to confirm what is compatible, included, and available for this chamber.
Optional
Air conditioning
Available
Air treatment
Confirm fit
With a specialist
- Elite Max · 1.6 ATA
Specifications
Available pressure settings
1.4, 1.5, and 1.6 ATA
Maximum pressure
1.6 ATA
Chamber diameter
32 inches
Oxygen concentrator
10 L/min · 95%+ oxygen
Chamber material
Tri-layer TPU fabric
System type
Soft-shell chamber
Warranty
3 years
| COMPONENT | INCLUDED CONFIGURATION |
|---|---|
| Chamber | Elite Max soft-shell · 32-inch diameter |
| Oxygen concentrator | DeVilbiss · 10 L/min · 95%+ oxygen |
| Air compressor | Oil-free compressor |
| Air treatment | Micron-level filtration |
| Setup and support | Video training and customer guidance |
What's in the box
- Elite Max 1.6 ATA chamber
- DeVilbiss 10 LPM oxygen concentrator
- Oil-free air compressor and micron-level filtration
- Remote control, setup guides, and video training
- Anti-roll bolsters and attendant buzzer
- 3-year warranty and customer support
Need the full configuration details?
Confirm current components, electrical requirements, and delivery with a specialist.
Specifications, included components, warranty, and pricing may change. Verify current product details with the manufacturer before ordering. This page is for general product information and is not medical advice.
- Optional upgrade · Elite All-in-One
Oxygen concentrator, air compressor & cooler in one ultra-quiet unit.
Replace the separate oxygen concentrator, air compressor, and dehumidifier with one ultra-quiet cabinet. The Elite All-in-One combines oxygen generation, air compression, and air cooling in a single rolling unit, so your setup takes up less floor space and runs far quieter.
Oxygen generator
Built-in oxygen concentration delivered directly to your mask or cannula.
Air compressor
Supplies the airflow that pressurizes and refreshes the chamber.
Air cooler
Cools incoming air to keep longer sessions comfortable.
Anion function
Optional negative-ion output for fresher-feeling air inside the chamber.
- Ultra-quiet operation
- One cabinet, one power cord
- Independent controls for each function
- Rolls on casters
- Optional feature
Ionizer for a fresher-feeling chamber.
The Elite All-in-One offers an optional anion function that adds negative-ion output to the chamber air. It is a separate comfort feature, not a replacement for oxygen delivery or the chamber’s air system.
Function
Adds optional negative-ion output to the chamber air.
Availability
Offered as an anion function with select Elite All-in-One configurations.
Before ordering
Confirm compatibility and inclusion with your exact system configuration.
Air conditioning
This two-part system combines an external cooling unit with an internal condenser that circulates cool air through the chamber to help reduce heat and humidity. As chamber air is compressed, its temperature can rise, so active cooling can help maintain a more comfortable environment. German-engineered for efficient operation.
Optional add-ons
The air-conditioning system is an optional add-on. Contact our team to confirm availability and compatibility with your chamber configuration.
- Quality assured
Certifications & Standards
Built to recognized standards for quality, safety, and responsible manufacturing.
UL Listed
A safety listing for equipment evaluated to applicable UL requirements.
CE Marking
Indicates that a product meets applicable European Union requirements for health, safety, and environmental protection.
ISO 9001:2015
An international standard for quality management systems and consistent processes.
ISO 14001:2015
An international standard for environmental management systems and managing environmental impacts.
ISO 13485
A quality management system standard for organizations involved in medical devices and related services.
PED Certified
Relates to the European Pressure Equipment Directive (2014/68/EU) for pressure equipment.
- Purchasing & delivery
Plan your Elite Max setup with a specialist.
Product configuration, current pricing, delivery, and setup guidance can be confirmed with the Oxygen Health Systems team.
Share your setup
Tell a specialist about the chamber configuration and accessories you have in mind.
Confirm the details
Review current specifications, compatible options, and pricing before ordering.
Coordinate delivery
Discuss delivery arrangements, setup guidance, and support for your Elite Max.
- Delivery arrangements are confirmed for each order.
- Product & purchasing
Questions, answered.
Key details about the Elite Max chamber, standard equipment, and planning your setup.
The Elite Max is available with 1.4, 1.5, or 1.6 ATA pressure settings, with 1.6 ATA as the maximum. Confirm the selected configuration with a specialist, and consult a qualified healthcare professional about whether hyperbaric oxygen therapy is appropriate for you.
The listed configuration includes the Elite Max chamber, a DeVilbiss 10 LPM oxygen concentrator, an oil-free air compressor, micron-level filtration, and setup guidance. Confirm the exact included components with a specialist before ordering.
The chamber is 32 inches in diameter and has seven viewing windows. The full configuration and space requirements are listed in the specifications section.
The product information lists a 3-year system warranty and a 20-year warranty for the chamber windows. Ask the product team to confirm current warranty terms for your purchase.
Optional equipment is available, including the Elite All-in-One system, ionizer, and air-conditioning options. Contact a specialist to confirm compatibility and current pricing for your setup.
Request a consultation to confirm delivery arrangements and available setup guidance for your location.
