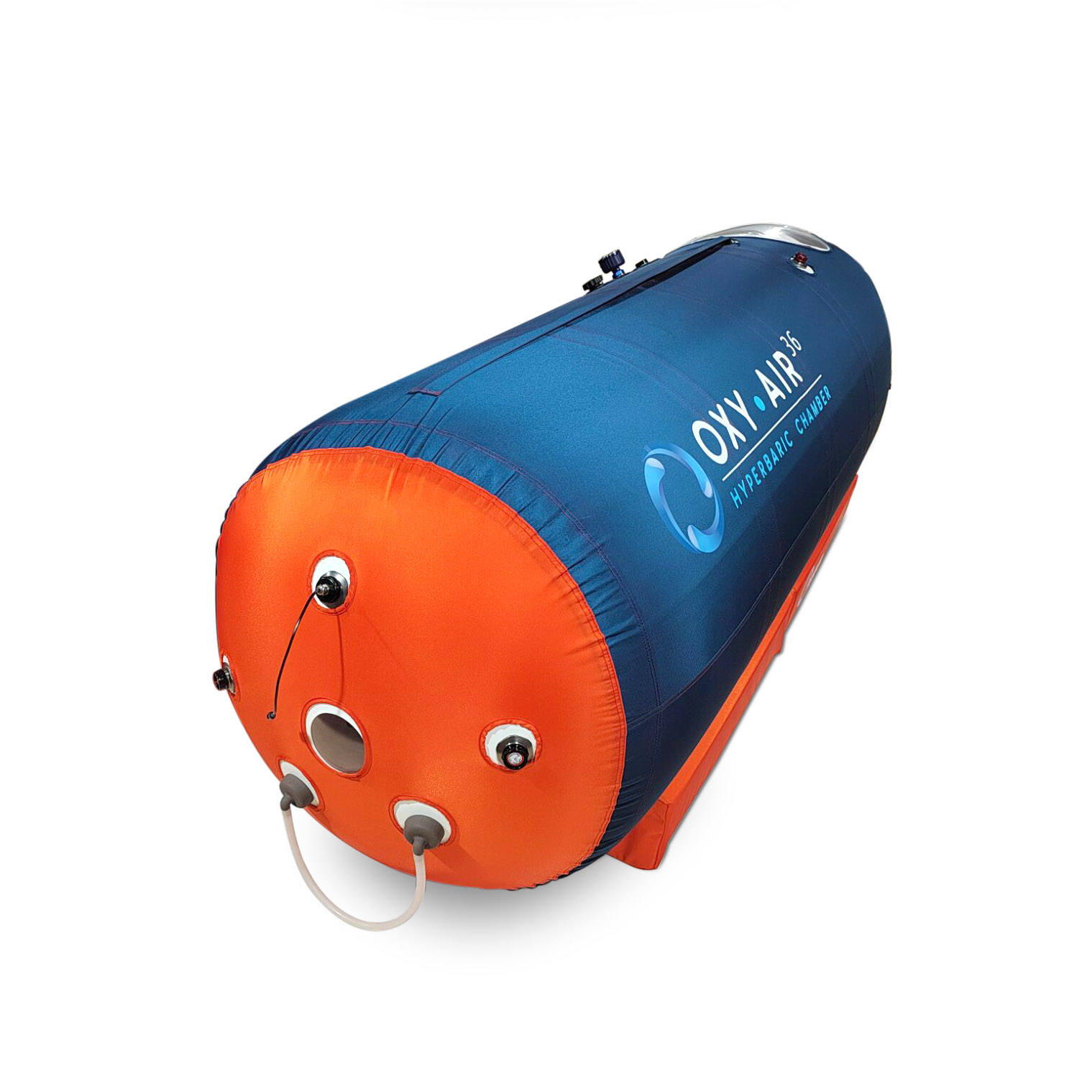

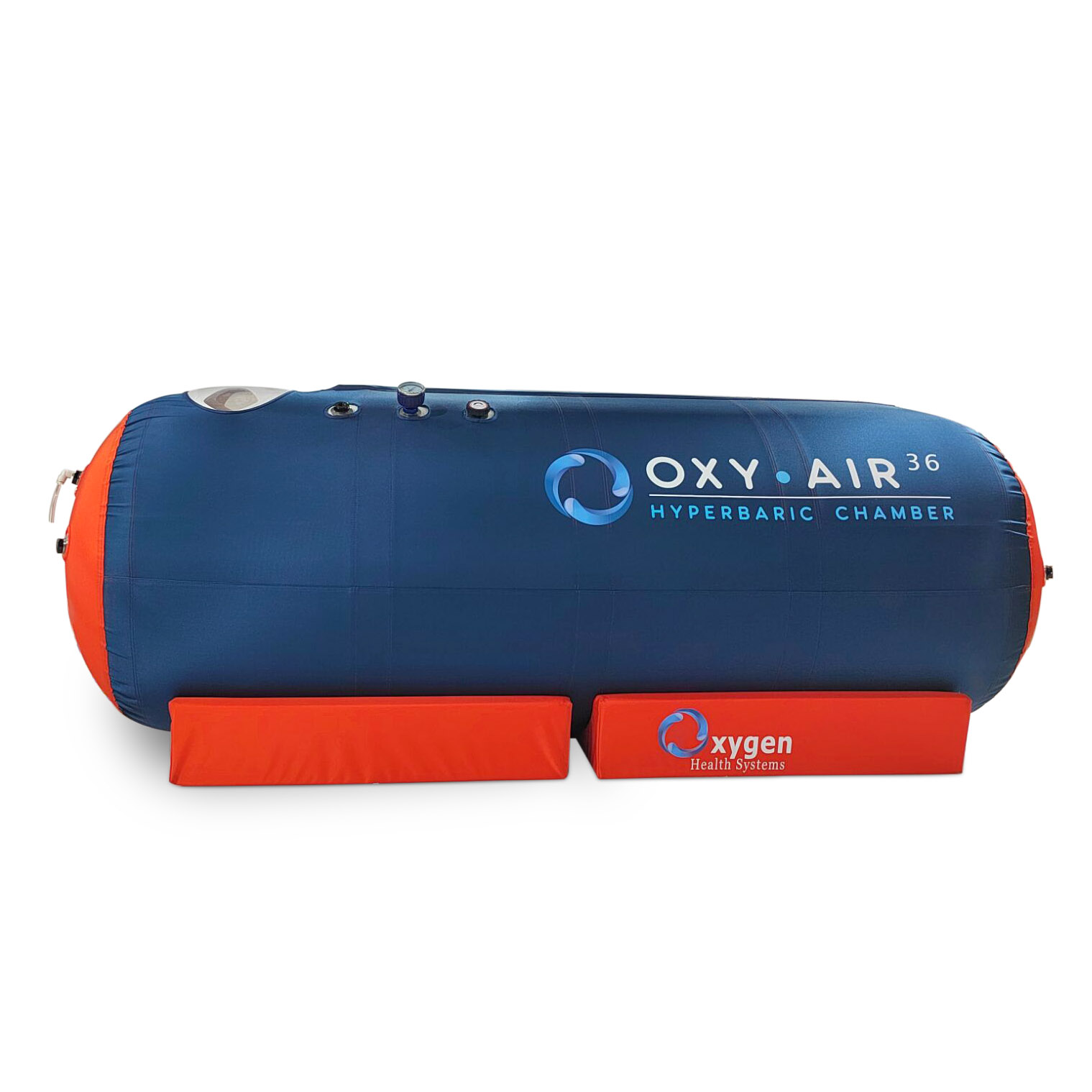

Hyperbaric Oxygen Chamber 36 Inches 1.3 ATA

Our 36-inch diameter Oxygen Chamber known as OxyAir 36 is feature-rich and available as a Side or Top entry system with all the built-in safety features one could ask for. It features medical-grade components, NASA technology integrated materials (DACRON), inside and outside pressure gauges, and an emergency pressure release button. Two people can fit inside our 36-inch Hyperbaric Chamber.
Occupants can utilize our highly durable chamber system without the assistance of a second person as it provides ease of entrance and exit without the use of obtrusive straps.

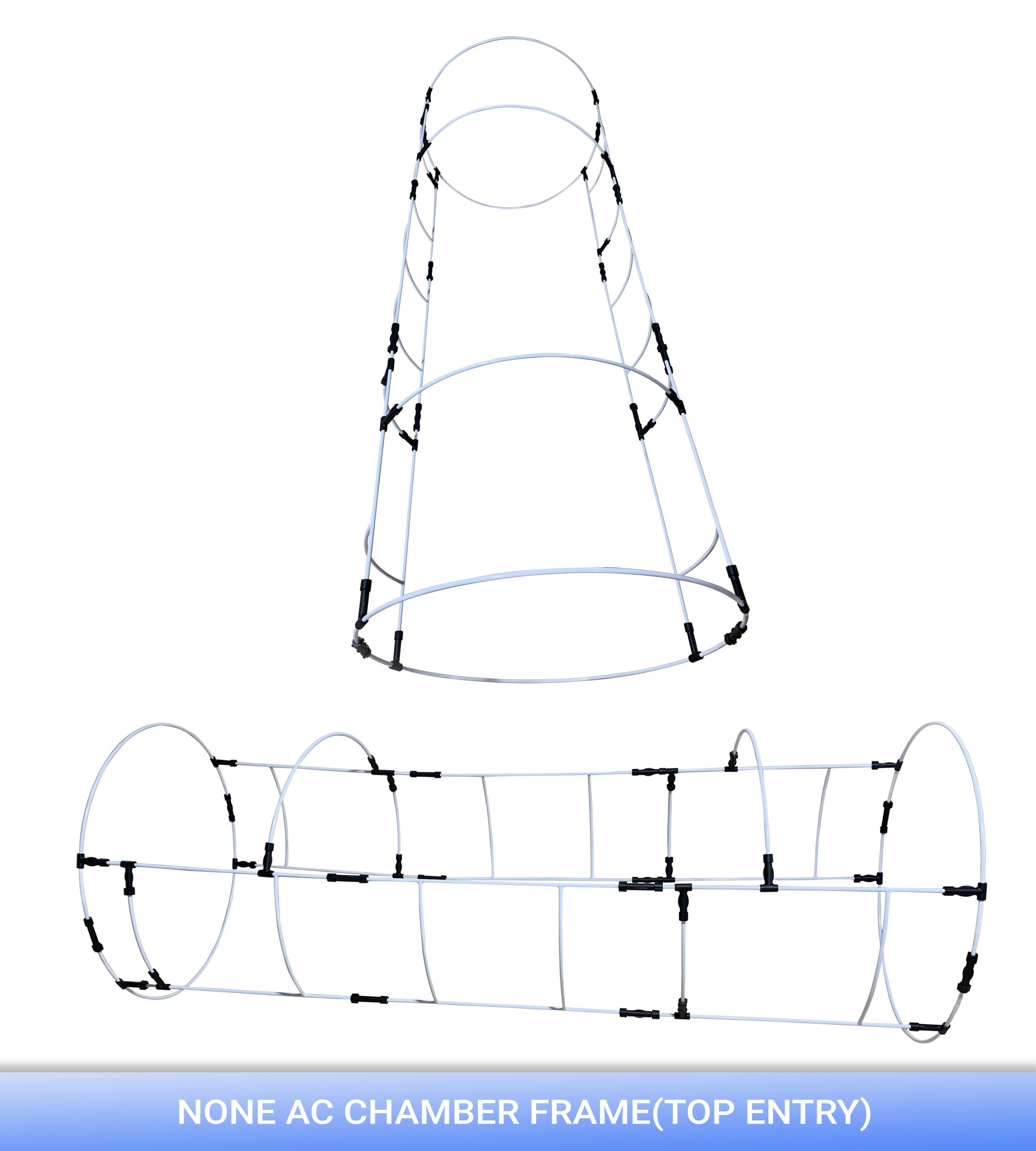

Our Hyperbaric Chambers all include a sturdy but lightweight interior frame that keeps the unit supported when not inflated. This prevents the chamber from falling on you while waiting for the inflation of the unit.

We provide a 10 LPM oxygen concentrator that provides 95%+ oxygen purity and 20 PSI as a standard feature while our competitors may not offer an oxygen concentrator as a standard integrated and necessary feature. We want you to have a quality system that you will be happy with for many years to come.

This system is large enough to fit an adult and child comfortably and allows even taller individuals to sit straight up in the chamber.

We also offer a 1.4 ATA / 42 KPA chamber as an optional upgrade. The 42 KPA chamber provides a 33% increase in pressure allowing for a shorter treatment time and more beneficial treatment as oxygen becomes denser at higher pressure. Our system offers a dehumidifier / Air Cooler at no additional cost to make your sessions more comfortable and may decrease the air temp about 4 degrees. This is not to be confused with our Air conditioning system which can substantially keep your chamber cool.

All our Hyperbaric chambers come standard with a Dehumidifier. A $700 value.

Our system is designed to reduce carbon dioxide buildup providing a more effective treatment compared to our competitor’s systems. The compressed air enters from the head and moves thru the chamber exiting through dual redundant pressure release valves.

Our chamber fabric is comprised of a 44 oz triple-layered design of a durable PET polyester embodied TPU material sourced from Germany. PET material, commonly known as polyester resin, is the most important variety in thermoplastic polyester. Its physical properties are milky white or light yellow highly crystalline polymer, with a smooth and shiny surface. Creep resistance, fatigue resistance, and abrasion resistance, low abrasion and high hardness, with the greatest toughness among thermoplastics. TPU is a thermoplastic elastomer that is a blend of rubber and plastic. Our Certified Food grade TPU material is tough, flexible, durable, and resistant to abrasions like oils and lubricants.

Our 3-Year warranty is sure to be appreciated by our customers as we provide 7/7 world-class support to our customers all over the world.

ISO 9001 sets out the criteria for a quality management system.
ISO 14001 sets out the criteria for an environmental management system.
ISO 13485 specifies requirements for a quality management system where an organization needs to demonstrate its ability to provide medical devices and related services that consistently meet customer and applicable regulatory requirements.

Be careful when choosing a hyperbaric chamber system. When considering this type of purchase for your health, you want to choose a product from a company that will provide you with the best quality and service in addition to a product that will provide effective treatments for years to come.

Call our hotline for any questions! 1 630-339-3606
Speak to one of our Hyperbaric Chamber specialists and learn more about our superior hyperbaric chamber systems. Also, ask us about our NEW 1.4 ATA Chamber.

• 3 Year Warranty with World Class service and support.
• Can be operated alone, without assistance.
• Delivers 95%+ Oxygen under pressure with the inclusion of a Drive Medical Devilbiss 10 LPM Oxygen Generator optionally via face mask, Cannula or Headset included with the system.
• 36-inch diameter provides plenty of room for comfort and to be able to move around. 2-person hyperbaric chamber
• We offer an FDA-approved medical-grade 10 LPM Oxygen Generator integrated with this system at no additional cost.
• Delivers safe and effective oxygen at 1.3 ATA/32 KPA/4.3 PSI or 1.4 ATA/42 KPA/5.8 PSI as an optional upgrade.
• Our unique system prevents carbon dioxide build-up by exhausting the carbon dioxide through the pressure relief valves.
• Our Compressor and Oxygen generator filtrates pollutants down to the micron level.
• Seams are triple heat welded and no toxic glues are used.
• Features a unique 2 zipper system with a center flap that provides a seal with leak prevention and dramatically reduces stress and possible breakage of the zipper.

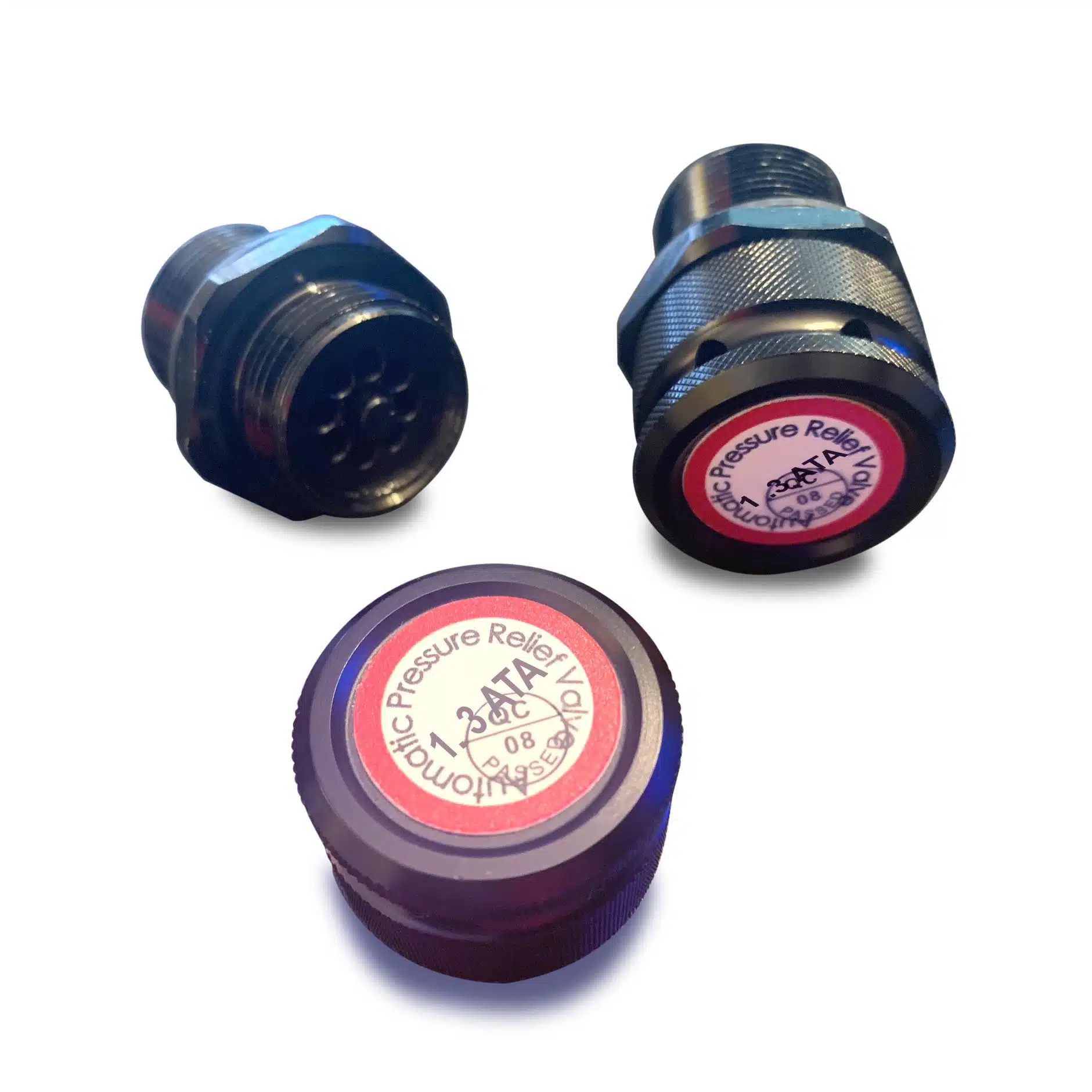

• The unique design of pressure relief valves. Making it easier to depressurize.
• Includes an emergency pressure release valve on the chamber to speed the depressurization in an emergency.
• Can be operated continuously.
• An internal pressure gauge is equipped so the user can observe the pressure while inside the chamber.
• Includes Anti-Roll bolsters to secure your system.
• Our materials are Certified non-toxic medical grade tri-layered extra strength 44 oz. TPU embodied with a polyester material called Dacron (Used for years by NASA in space suits) with an extremely durable outer coating.
• The included dehumidifier can make your experience more comfortable. A premium feature valued at over $700 is offered at no additional cost.
• Unlike other systems, our system is supported by an internal metal frame, allowing for ease of entry and exit.
• An additional port is embedded in our system in case you want to utilize our ionizer or add a secondary oxygen generator.
• Includes Negative ION UNIT to enhance treatment. This incredible new option allows customers to receive pure oxygen along with negative ions.  We are the only company in the industry to provide this incredible new feature.
• Includes Power outage Alarm system – Alerts customers of unexpected power outages.
• Includes Attendant Buzzer – Alerts attendant for assistance.
• With our Medical Grade components, we provide the best quality and features in this price range and rival many units at 3 times the price.
• Includes video setup training, Quick Tips guides for usage, and Customer support for any questions during acquaintance with the unit in addition to ongoing support.
• 6 months no interest financing available. Call for details
• Fast shipping to your door.
• Best pricing available.
• We sell internationally and can provide our systems to your international voltage and plug type requirements.

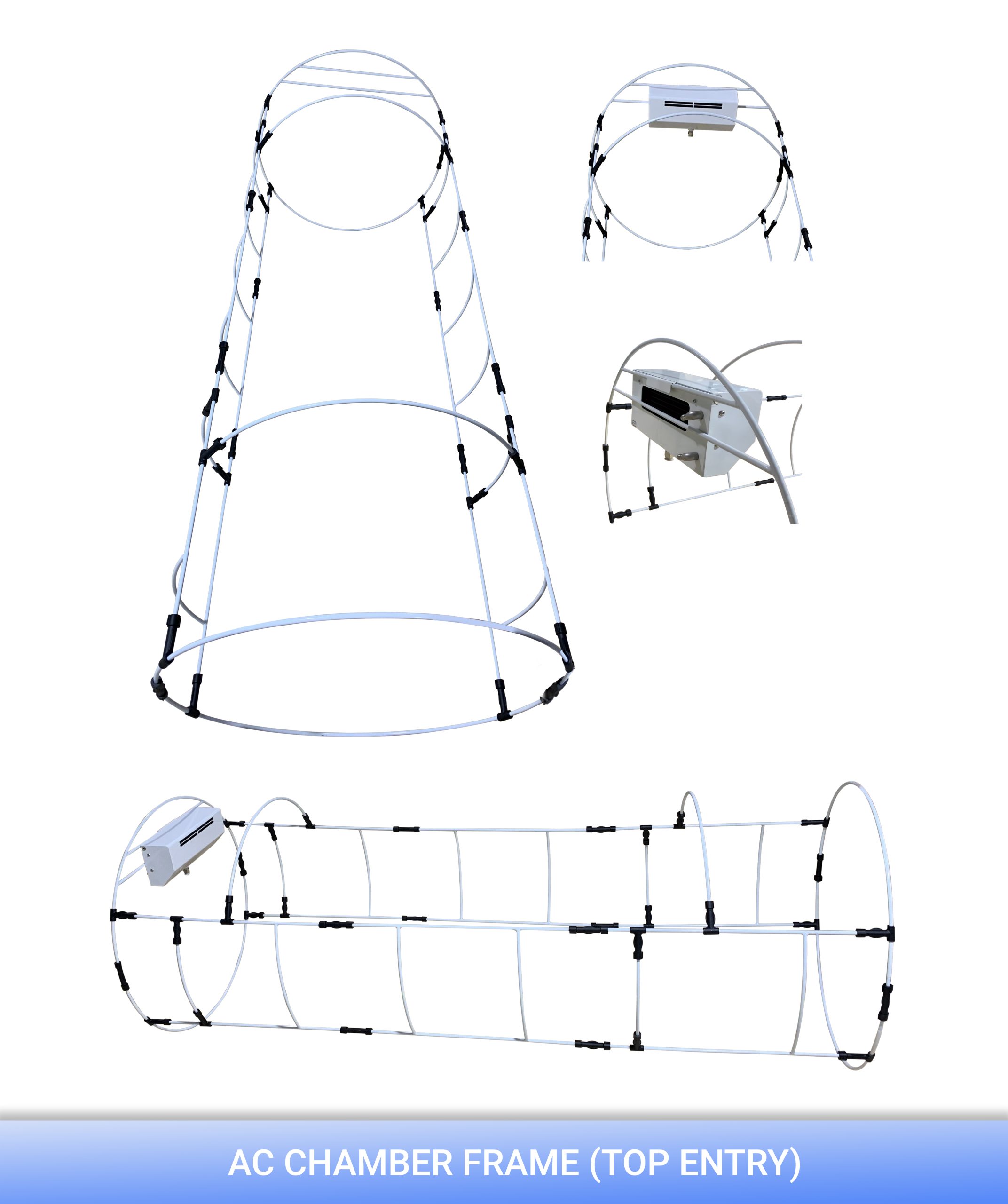

• NEW – Optional Air Conditioning system can be ordered that would ensure a cool experience when the unit is operated in warmer climate areas or over extended periods of time.
• Optionally add our Hyperbaric Chamber Grounding system to remove any possible static electricity from the chamber and customers inside the chamber. (Click Here). We have developed this feature for those customers who are concerned about environments that may be conducive to static buildup, we are the only manufacturer to offer this feature in a soft-shell Hyperbaric Chamber.

To give you an idea of the quality of our systems. All our chambers go through a rigid test plan. The Hyperbaric Chamber reservoir bag is rated to last a whopping 39 years if used 1 hour per day and 5 days per week. Our test systems have been running at 1.8 ATA, a much higher pressure continuously for 5 years now. That is over 43,00 hours with no faults. Our manufacturing has been certified as ISO9001, ISO14001, and ISO13485 compliant.

Let’s talk about air conditioning systems and why other manufacturer’s AC systems don’t work. Many of our competitor air conditioning systems don’t work because they are single-action cooling systems and only attempt to cool high-volume airflow into the hyperbaric chamber from the compressor. These types of approaches only provide minimal cooling action and alone are almost useless. Our systems can also be ordered as AC-READY which will prep our system to accept our dual action air conditioning system.

Our 36 inch Chamber is utilized when multiple customers want to engage in therapy simultaneously or by larger pro athletes and clinics who want a unit to fit all sizes. There are many people out there looking for larger units to utilize as sleep chambers.

We have had some customers tell us stories of purchasing used chambers from our competitors on eBay or other mediums only to find they had leakage. So why buy a used system when you can have a new one and have the peace of mind knowing that you are purchasing the best in both quality and features to hold the test of time.

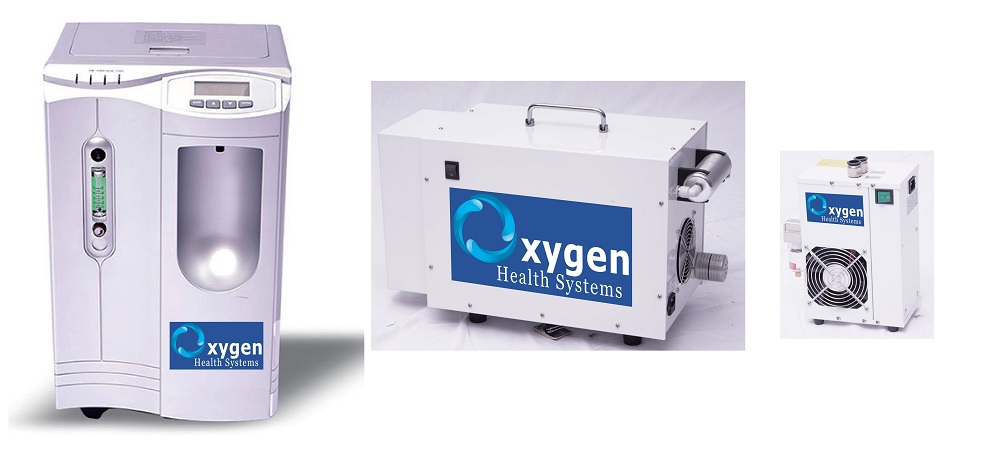

Oxygen Concentrator

FDA Approved providing stable oxygen purity at 10 LPM with 95% purity after 5 minutes. Provides a hefty 640 Watt Motor for long-lasting durability and 18 to 20 PSIG suitable for high-pressure chambers!

SPECIFICATION

Air Compressor

Adjustable pressure control system Oil-free low noise design provides high volume Air Flow at 72 LPM. Provides activated carbon two-way filtering technology. Effectively Purifies air and all dust contaminants.

The system includes the following items:

	Extra Strength/Non-Toxic Chamber capsule sized for maximum comfort for 1 or 2 individuals if required. 36 inches Diameter x 89 inches long
	Oil-Free Air Compressor
	Oxygen Concentrator Upgraded to 10 liters/min Devilbiss FDA Approved
	Comfort Mattress
	Interior Metal Frame
	Dehumidifier integrated for free.
	Negative Ionization System
	A muffler designed to reduce noise in the chamber
	2 Oxygen Masks, 2 Headsets, and 2 Nasal Cannulas included to breathe oxygen directly.
	Power Outage alarm

KEY FEATURES OF OXYGEN HEALTH SYSTEMS CHAMBERS
Portable, Simple to Install, Easy to Use	Durable Internal Frame for Greater Chamber Structure Support	Environment-Friendly Materials, NON-Glue, NON-Toxic	Memory Foam Mattress Made for Greater Comfort
Quality Dual Zipper System (YKK) for Durability and Strength	Internal/External Dual Pressure Display Allowing Pressure Reading Anytime from Inside and Outside	Five Carbon Filters Designed to Remove Fine Contaminants and Provide Clean Air	Internally/Externally Operable Pressure Release Valve for Self-Sustaining Operation
Quiet High-Volume Air Compressor Designed to Expel CO2	Dual-Action Air Conditioner for Internal Cooling/Removal of Humidity	Included Ionization Technology to Elevate Negative Ions Inside Chamber	Multiple Spare Ports For Future Expansion
Redundant Pressure Regulating Valves for Added Safety	Super High Pressure 20 PSI, 10 LPM Oxygen Concentrator with 95% Purity	Operational Videos and Training	Higher pressure models available. Higher pressure translates to greater compression of oxygen molecules
Available Models with Advanced Door Design for Easy Entry/Exit for Mobility-Challenged Users	O2 Concentrator at NO Extra Charge	Default Dehudifier at NO Extra Charge Included with Chamber Without A/C	Midwest-Based US Company with all US-Based Customer/Technical Support
