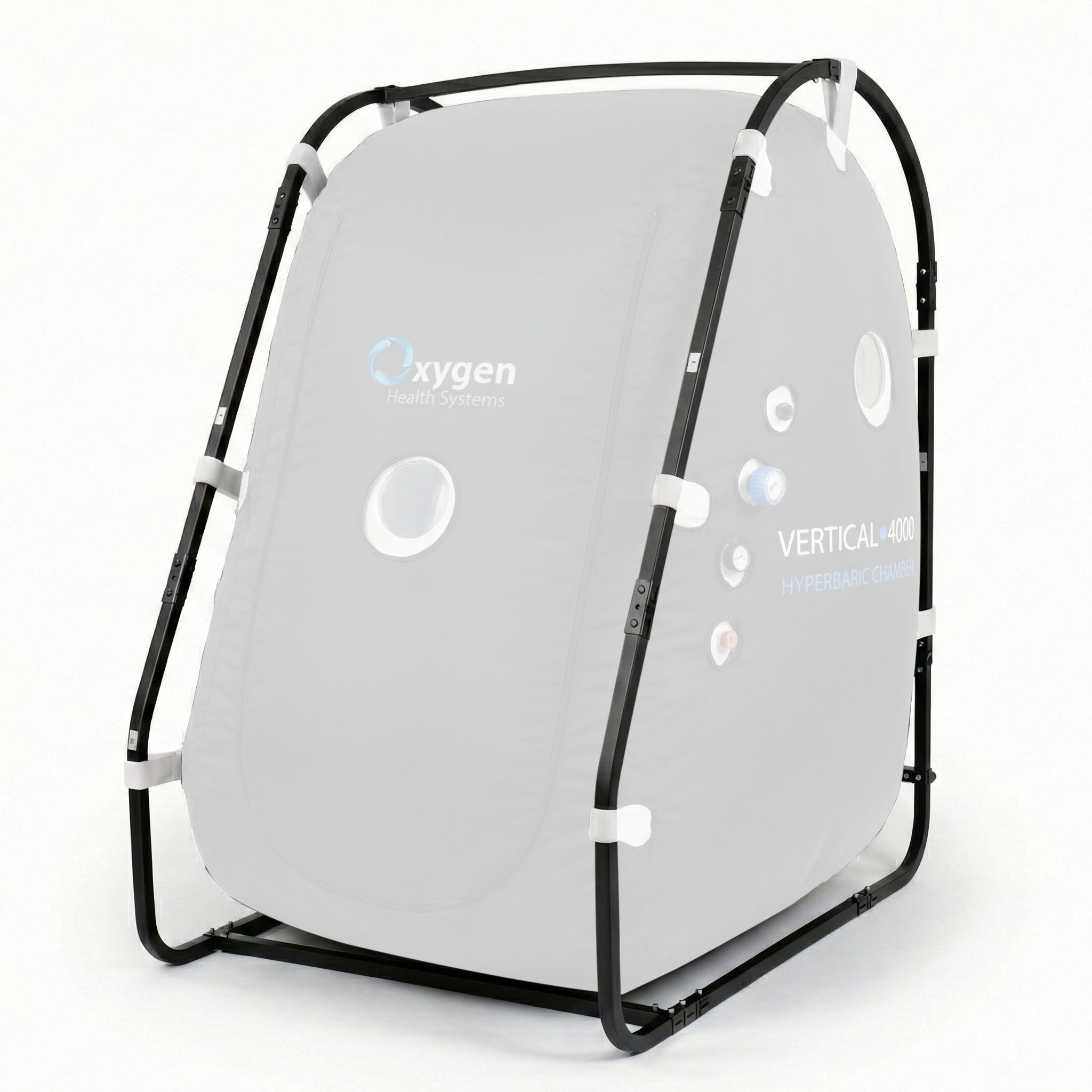

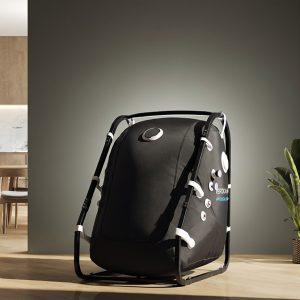

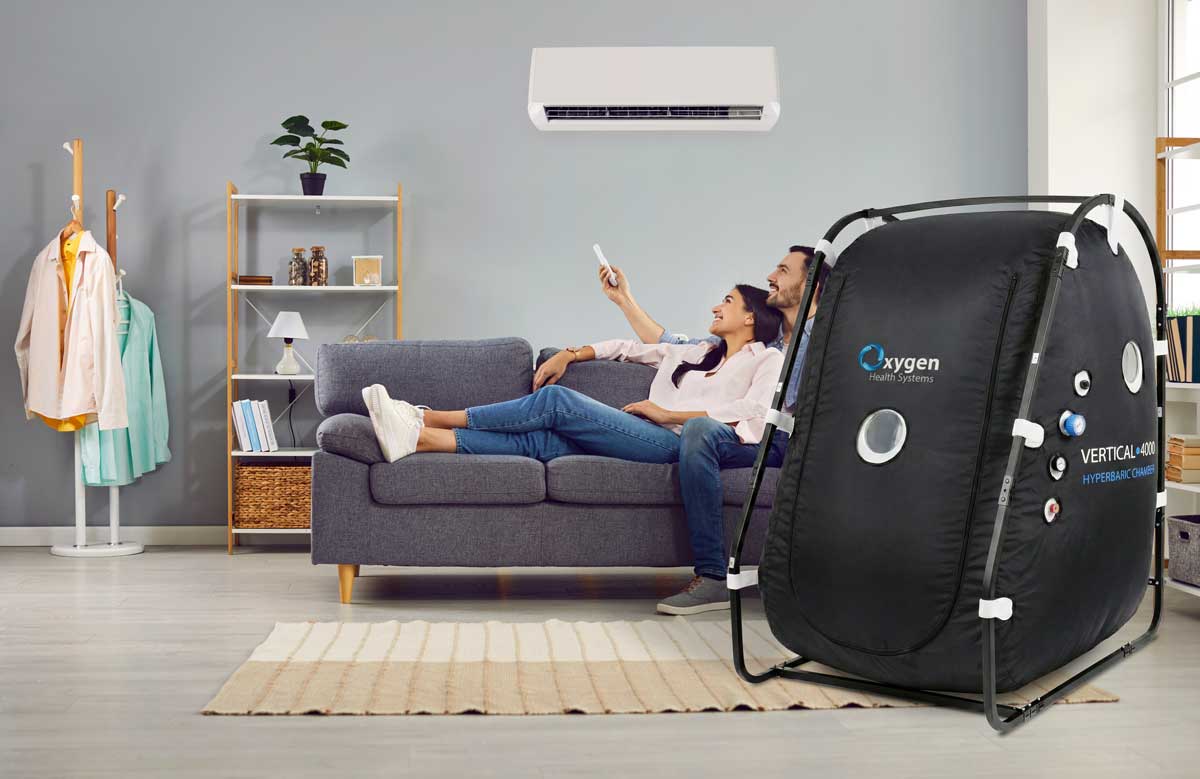

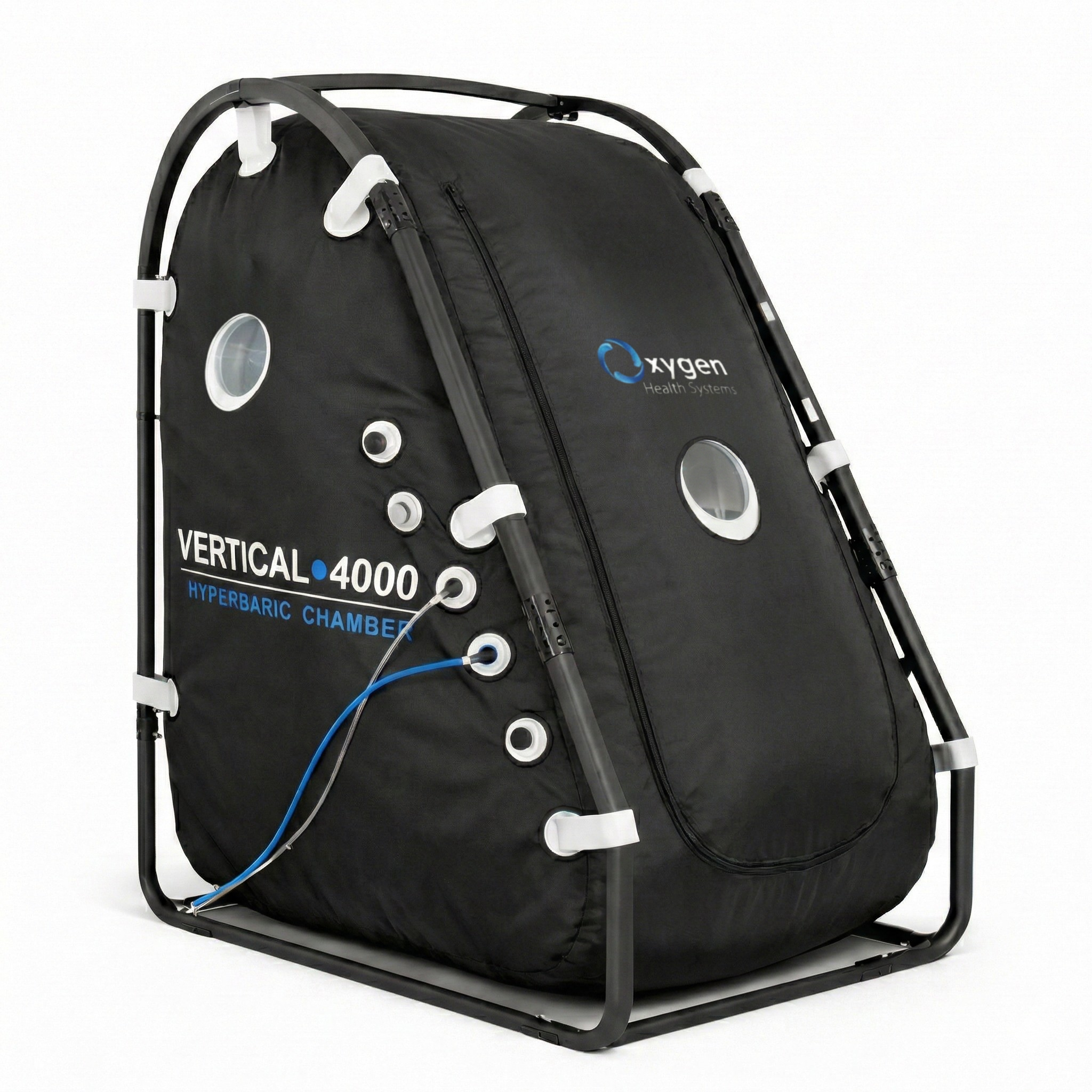

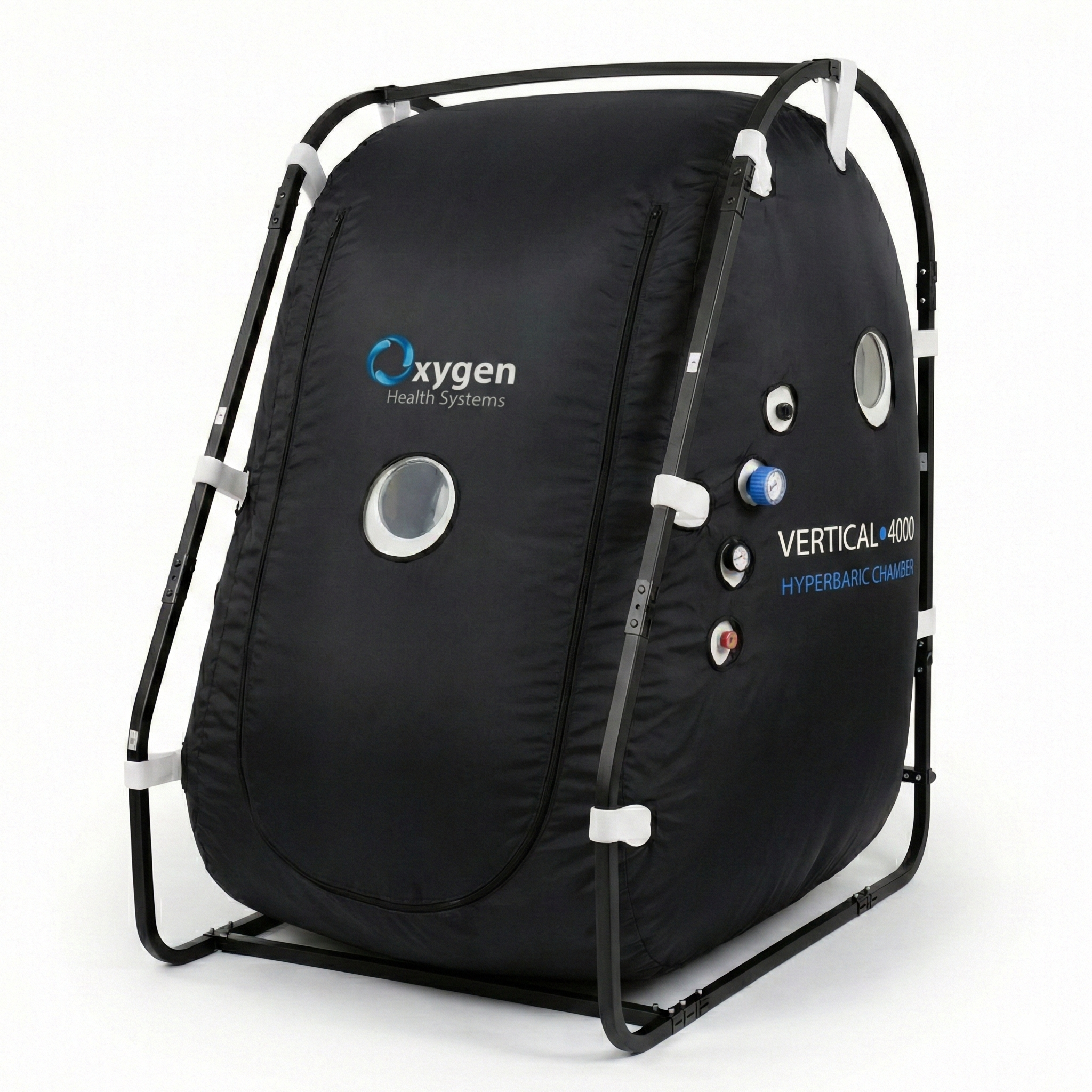

MC4000U Hyperbaric Vertical Chamber Model U Walk-in Chamber with External Frame | 1.4 ATA

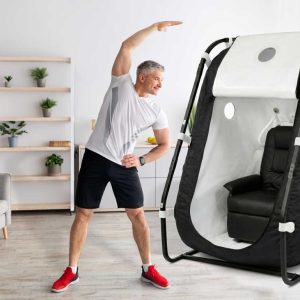

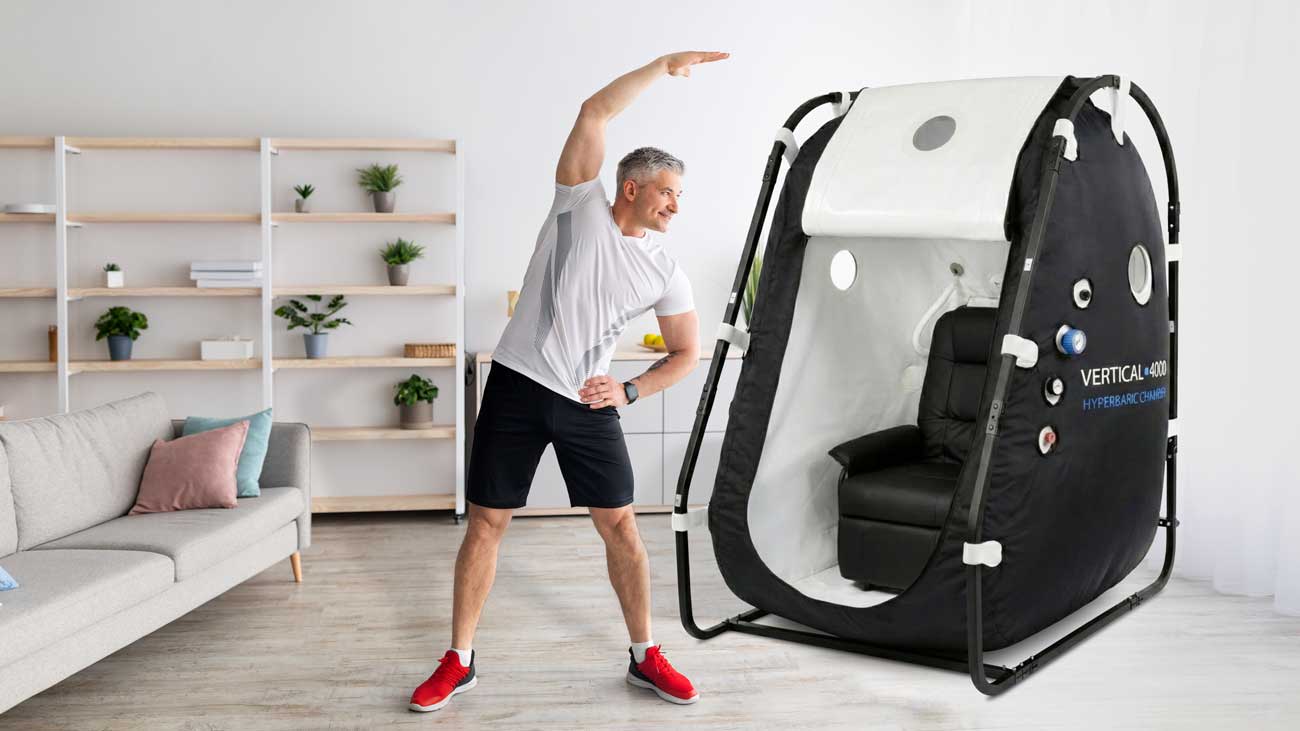

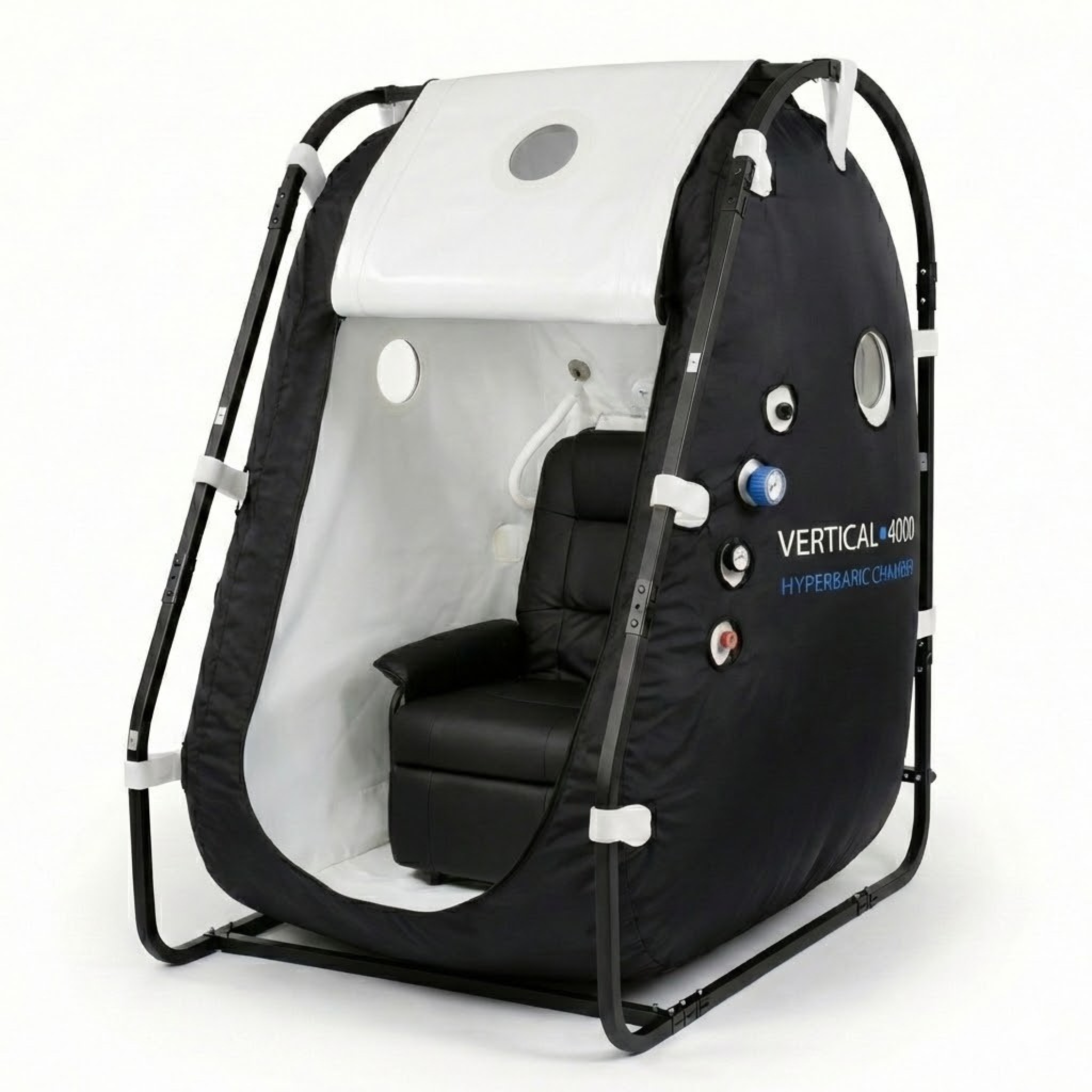

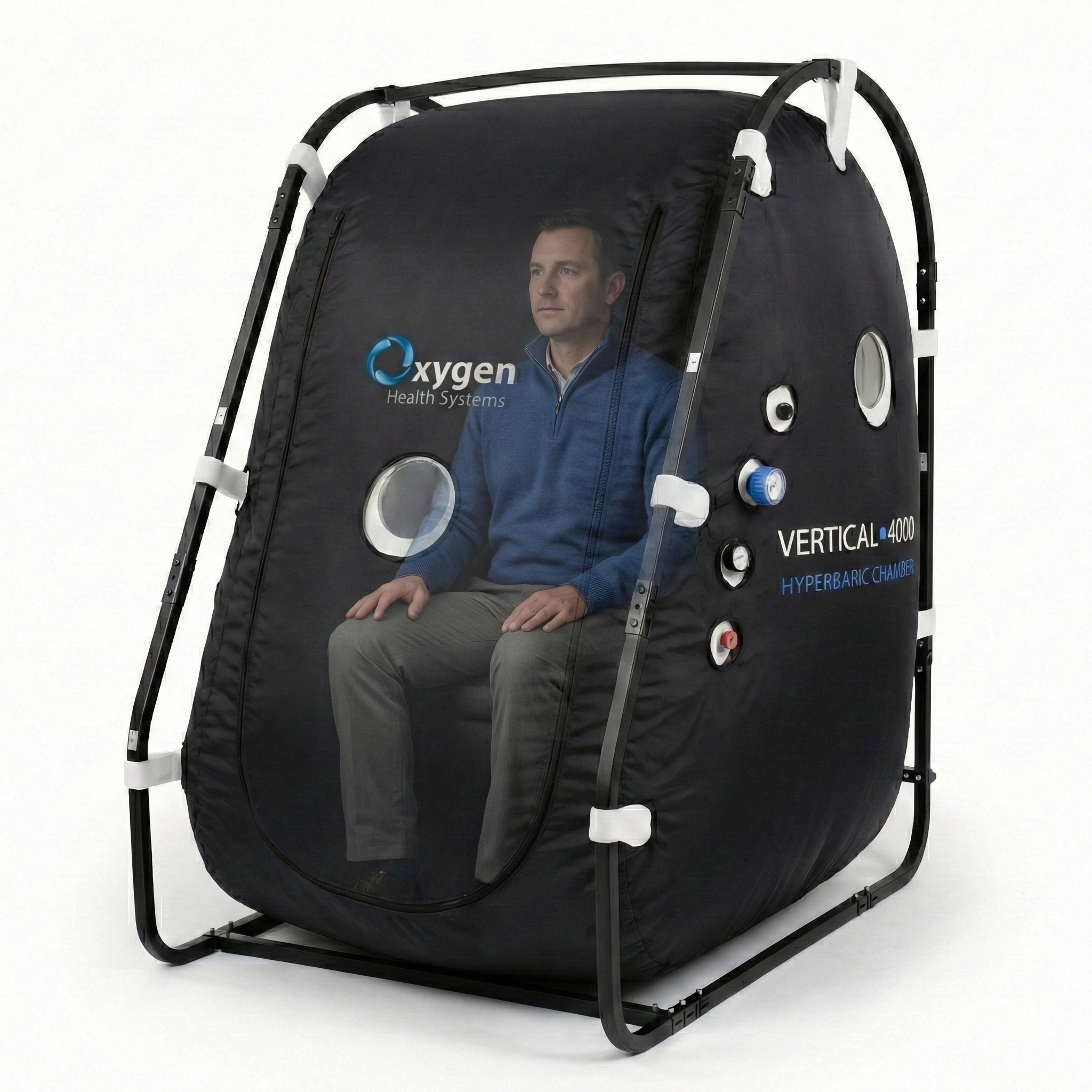

This is a roomy vertical portable hyperbaric chamber. The chamber height is 5′ 3″  with a 32 x 52-inch doorway. This chamber is designed for those that what to sit and relax in a regular chair during their Hyperbaric Session. If you have a hard time getting down on the ground, then this is the perfect chamber for you. We utilize food-grade components and integrated innovative technology. This Hyperbaric chamber features an upgraded 10 LPM oxygen generator, producing 96% oxygen purity for the most effective treatments, and delivers compressed oxygen at 42 KPA (1.4 ATA).  Our system offers a dehumidifier at no additional cost to make your sessions more comfortable. Our system has been built with safety in mind offers an emergency pressure relief button and dual pressure gauges both inside and outside and redundant pressure regulators to maintain consistent circulatory airflow within the chamber during treatments.

Our advanced hyperbaric oxygen systems offer premium features that our competitors do not offer at competitive pricing. With a standard Air cooler to increase comfort and a 10 LPM 20 PSI DeVilbiss Oxygen concentrator as a standard feature. Our research and design team has worked hard to deliver the most innovative features for your therapy.

We believe no other hyperbaric chamber manufacturer can claim they have a more rigid test plan than ours. Our test systems have been running for over 5 years continuously at over 3 times the pressure which is over 43,000 hours with no faults. Once you feel the thickness and ruggedness of our materials, you will be amazed at the value you have received. The hyperbaric chamber reservoir bag is rated to last a whopping 39 years if used for 1 hour per day, 5 days per week. Our manufacturing facility has been certified to ISO9001, ISO14001, and ISO13485.

With Internal and external pressure gauges to keep the user informed of the current pressurization level and again a feature that some of our competitors at 3 times the price do not provide. One should always be able to safely view the chamber’s operating pressure to avoid an early exit and subsequent chamber damage.

Our units are designed to last 25 to 30 years and can be used continuously, thanks to durable triple heat-welded seams, food-grade materials, and a proprietary U-Shape 3-zipper system with a center flap that sets our Hyperbaric chamber unit apart from the competition. Our units have many certifications, as listed below.

Many of our customers comment on how happy they are to have chosen our hyperbaric chamber and are just so grateful we can provide such high quality at an affordable price. Be careful when choosing a hyperbaric chamber system. When considering this type of purchase for your health, you want to choose a product from a company that will provide you with the best quality and service in addition to a product that will provide effective treatments for years to come.

Call our hotline for any questions! 630-812-7865 to speak to one of our oxygen specialists and learn more about our superior hyperbaric chamber systems.

Hyperbaric Oxygen Chamber Features:

• Three-Year Warranty with an unprecedented 20 Year Window Warranty.
• Delivers 95%+ Oxygen under pressure via a face mask or nasal cannula with a 10 LPM DeVilbiss Oxygen Concentrator. (FDA Approved)
• Plenty of room for comfort and to move around.
• Designed to support 1 individual.
• Seams are Triple and penta-welded, and you can be assured that no toxic glues are required or utilized.
• 3 transparent viewport windows allow for ambient light and monitoring from multiple viewpoints.
• Can be operated alone, without assistance.
• Our unique system prevents carbon dioxide buildups and filters pollutants down to the micron level.
• Features a proprietary U-Shape 3-zipper system with a center flap that provides a seal, leak protection, and durability to last a lifetime.
• The unique design of pressure relief valves, both internally and externally, allows for depressurization from inside or outside the chamber.
• Includes an emergency valve on the chamber to speed the depressurization in an emergency.
• Delivers safe and effective Oxygen sessions at 1.4 ATA ( 5.8 PSI | 42 KPA).
• An internal pressure gauge is equipped so the user can observe the pressure while inside the chamber. The unit has both internal and external pressure gauges.
• Quick connect Internal steel frame allows entry into the unit without the unit collapsing on top of you and holds the shape when the unit is not in use.
• The included air dehumidifier is designed to enhance your comfort. This is a premium feature offered at no additional cost.
• Our materials are certified non-toxic, industrial-grade, extra-strength, 3-layer, 44 oz. TPU embodied with a polyester material sourced from Germany (used for years by NASA in space suits).
• Provides Double Deck Windows for additional strength.
• Power outage Alarm system – Alerts customers of unexpected power outages.
• Attendant Buzzer – Alerts attendant for assistance.
• Can be operated continuously and safely while reducing carbon dioxide buildup.
• Provides the best quality and features in this price range and rivals many units at double the price.
• Includes video setup training, Quick Tips guides for usage, and Customer support for any questions during acquaintance with the unit in addition to ongoing support.
• 6 months of no-interest financing available. Apply Now.
  Fast Shipping to your door by FedEx.
• Best pricing in the marketplace.
• An optional Air Conditioning system can be ordered that would ensure a cool experience well beyond the capabilities of the air cooling system.
• We sell internationally and can provide our systems to your international voltage and plug type requirements.
• Optionally add our Hyperbaric Chamber Grounding system to remove any possible static electricity from the chamber and customers inside the chamber. (Click Here). We have developed this feature for those customers who are concerned about environments that may be conducive to static buildup, we are the only manufacturer to offer this feature in a soft-shell Hyperbaric Chamber.

Superior Quality is our primary concern with certifications and long term testing:

Our test systems have been running for over 5 years continuously at a much higher pressure which is over 43,000 hours with no faults. Once you feel the thickness and ruggedness of our materials, you will be amazed at the value you have received. The Hyperbaric Chamber reservoir is rated to last a whopping 39 years if used 1 hour per day and 5 days per week. Our manufacturing has been certified as ISO9001, ISO14001, and ISO13485 compliant.

ISO 9001 sets out the criteria for a quality management system.
ISO 14001 sets out the criteria for an environmental management system.
ISO 13485 specifies requirements for a quality management system that an organization must demonstrate to provide equipment and related services that consistently meet customer and applicable regulatory requirements.

We have had some customers tell us stories of purchasing used chambers from our competitors on eBay or other mediums, only to find they had leakage. So why buy a used system when you can have a new one and have peace of mind knowing that you are purchasing the best in both quality and features to hold the test of time. We have thousands of satisfied system owners all over the globe internationally enjoying the benefits of our systems.

OXYGEN HEALTH SYSTEMS HYPERBARIC OXYGEN CHAMBER MC4000U EXTERNAL FRAME SPECIFICATIONS
SPECIFICATIONS	WEIGHT	POWER	SIZE
Chamber	29 lbs	N/A	Chamber Size: Inflated – 61”L x 52”W x 66”HChamber Size Uninflated – 54″L x 47″W x 58″HDoor Size: 32” Wide x 52” TallBottom Frame Width 40″
CHAMBER FEATURE ★ 1.4 ATA | 5.8 PSI | 42 KPA ★ High-strength double-sided 44 oz food-grade TPU/ polyester material. ★ Certified Non-Toxic/Eco-Friendly ★ Portable/Foldable ★ Safe/One-Person operation ★ Warranty 3 Years – With 20 Year Window Warranty★ 3 Windows – 1 on each side except back.
Oxygen Concentrator (See Spec Sheet)(Click to View the Devilbiss 10 Service Manual)	42 lbs	640 Watt	13″ L x 12″ W x 24.5″ H
OXYGEN CONCENTRATOR FEATURE ★ FDA Approved ★ PSA molecular sieve high technology. ★ Non-Toxic and ECO-Friendly. ★ 18 to 20 PSIG @ 95% Purity. ★ Continuous flow oxygen production, no oxygen tank required. ★ 630 Watt (10 Amps) Heavy-duty motor.
Compressor	52 lbs	620 Watt	15″ L x 9.5″ W x 10.2″ H
COMPRESSOR FEATURE ★ Oil-free ★ Non-toxic/ECO-Friendly ★ Quiets ★ Super adsorption activated filters ★ Double inlet and outlet filters.
Dehumidifier	11 lbs	300 Watt
DEHUMIDIFIER FEATURE ★ Reduces humidity level to keep you comfortable.
Total system Weight	134 lbs
Total system Watts		1560 Watt
All Equipment Voltage	110v-120v ( 220V available upon request)
Certificates	CE, ISO9001, ISO14001, ISO13485
Optional Upgrade
AC Unit	67 lbs	550 Watt	13″W x 16″L x 22″H
AC FEATURE ★ Temp. Range（℃）: -5~30 (Water)
Grounding Wire	0.023 lbs

VERTICAL CHAMBERS COMPARISON

Real size, real comparison





MC4000*	MC4400*	MC4500*
INFLATED CHAMBER
61″L x 52″W x 66″H	71″L x 52″W x 71″H	71″L x 52″W x 81″H
UNINFLATED CHAMBER
54″ L x 40″W x 58″H	60″ L x 40″W x 67″H	60″ L x 40″W x 71″H

THE SYSTEM INCLUDES THE FOLLOWING ITEMS:

	Chamber Capsule
	Oil-Free Air Compressor
	Oxygen Concentrator 10 liter/min Devilbiss
	Metal Frame
	DEHUMIDIFIER
	A muffler designed to reduce noise in the chamber
	2 Oxygen Masks, 2 Headsets, and 2 Nasal Cannulas included to breathe oxygen directly.
	Communications System
	LED Interior Lighting System
	Finger Pulse Oximeter to measure blood oxygen saturation

KEY FEATURES OF OXYGEN HEALTH SYSTEMS CHAMBERS
Portable, Simple to Install, Easy to Use	Durable Internal Frame for Greater Chamber Structure Support	Environment-Friendly Materials, NON-Glue, NON-Toxic	Memory Foam Mattress Made for Greater Comfort
Quality Dual Zipper System (YKK) for Durability and Strength	Internal/External Dual Pressure Display Allowing Pressure Reading Anytime from Inside and Outside	Five Carbon Filters Designed to Remove Fine Contaminants and Provide Clean Air	Internally/Externally Operable Pressure Release Valve for Self-Sustaining Operation
Quiet High-Volume Air Compressor Designed to Expel CO2	Dual-Action Air Conditioner for Internal Cooling/Removal of Humidity	Included Ionization Technology to Elevate Negative Ions Inside Chamber	Multiple Spare Ports For Future Expansion
Redundant Pressure Regulating Valves for Added Safety	Super High Pressure 20 PSI, 10 LPM Oxygen Concentrator with 95% Purity	Operational Videos and Training	Higher pressure models are available. Higher pressure translates to greater compression of oxygen molecules
Available Models with Advanced Door Design for Easy Entry/Exit for Mobility-Challenged Users	O2 Concentrator at NO Extra Charge	Default Dehumidifier at NO Extra Charge Included with Chamber Without A/C	Midwest-Based US Company with all US-Based Customer/Technical Support
